SP2000-0.010-AC-124

Active

Bergquist

THERM PAD 22.15MMX20.07MM W/ADH

Search across all available documentation for this part.

Active

Bergquist

THERM PAD 22.15MMX20.07MM W/ADH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 2.33

General part information

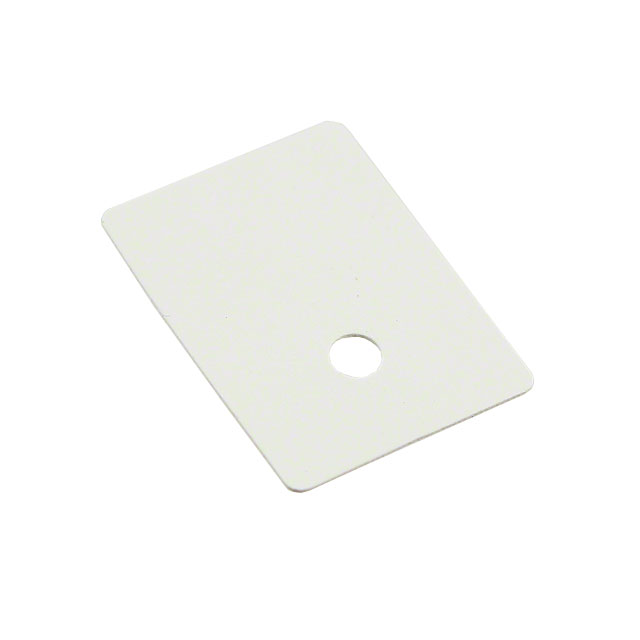

Thermal Pad White 22.15mm x 20.07mm Rectangular Adhesive - One Side

Technical documentation and resources

Specification	SP2000-0.010-AC-124	SP2000 Series

Adhesive	Adhesive - One Side	Adhesive - One Side
Backing, Carrier	Fiberglass	Fiberglass
Color	White	White
Outline [x]	22.15 mm	22.15 - 25.4 mm
Outline [y]	20.07 mm	19.05 - 20.07 mm
Shape	Rectangular	Rectangular, Square
Shelf Life	12 Months	12 Months
Storage/Refrigeration Temperature [Max]	90 °F	90 °F
Thermal Conductivity	3.5 W/m-K	3.5 W/m-K
Thermal Resistivity	-	0.33 °C/W
Thickness	-	0.381 - 0.508 mm
Thickness	-	0.015 - 0.02 in
Thickness [custom]	0.254 mm	0.254 mm
Thickness [custom]	0.01 in	0.01 in
Type	-	Insulator Pad, Sheet
Usage	TO-220	TO-220

Part	Shelf Life	Thermal Conductivity	Outline [y]	Outline [x]	Thermal Resistivity	Thickness	Thickness	Color	Storage/Refrigeration Temperature [Max]	Backing, Carrier	Shape	Usage	Type	Adhesive	Thickness [custom]	Thickness [custom]
Bergquist SP2000-0.015-00-104	12 Months	3.5 W/m-K	19.05 mm	25.4 mm	0.33 °C/W	0.381 mm	0.015 in	White	90 °F	Fiberglass	Rectangular	TO-220
Bergquist 2191805	12 Months	3.5 W/m-K				0.508 mm	0.02 in	White	90 °F	Fiberglass	Square		Insulator Pad, Sheet	Adhesive - One Side
Bergquist SP2000-0.010-AC-124	12 Months	3.5 W/m-K	20.07 mm	22.15 mm				White	90 °F	Fiberglass	Rectangular	TO-220		Adhesive - One Side	0.254 mm	0.01 in
Bergquist SP2000-0.015-00-1212	12 Months	3.5 W/m-K				0.381 mm	0.015 in	White	90 °F	Fiberglass	Square		Insulator Pad, Sheet
