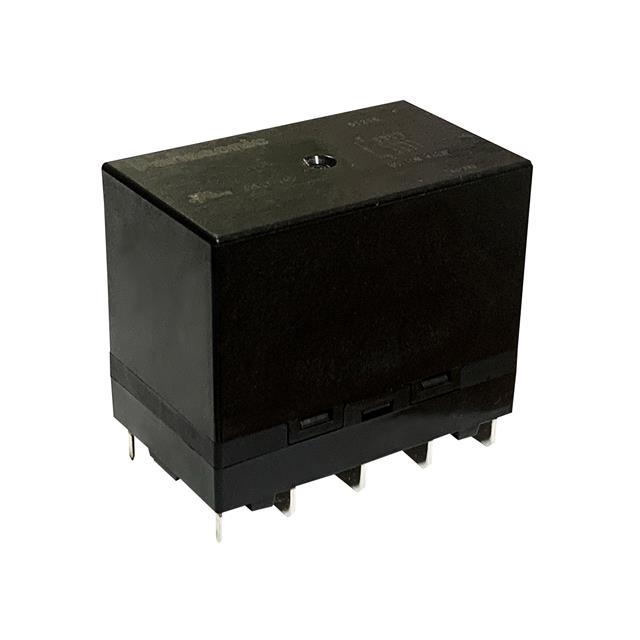

AHER3192
ActivePanasonic Electric Works
HE-R RELAY, 4FORMA, 24VDC COIL
Deep-Dive with AI
Search across all available documentation for this part.
AHER3192
ActivePanasonic Electric Works
HE-R RELAY, 4FORMA, 24VDC COIL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AHER3192 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 167 mA |
| Coil Resistance | 144 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | 4PST-NO (4 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 50 A |
| Load - Max Switching [Max] | 24000 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 50 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 30 ms |
| Switching Voltage | 480 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 67.51 | |
| 10 | $ 60.12 | |||
| 25 | $ 57.40 | |||
| 50 | $ 55.43 | |||
| 100 | $ 55.36 | |||
Description
General part information
AHER31 Series
General Purpose Relay 4PST-NO (4 Form A) 24VDC Coil Through Hole
