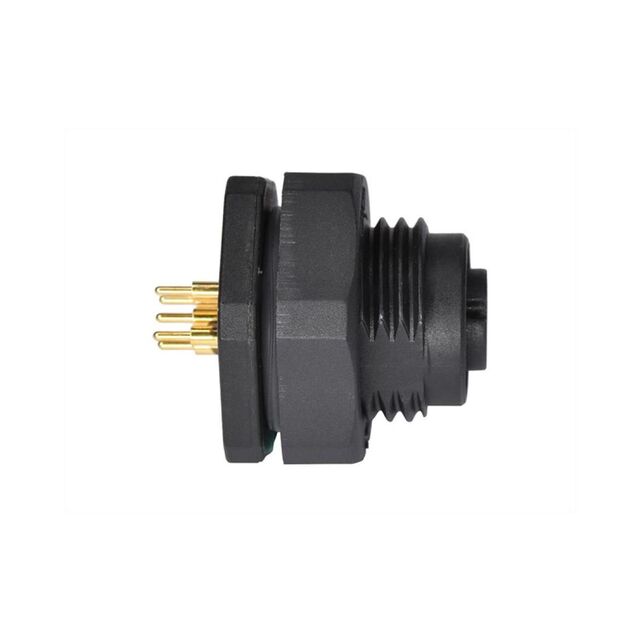

HPC-05PFFP-SF8001

Active

Amphenol LTW

NMEA 2000, MICRO, 4A, 05 PINS, R

Search across all available documentation for this part.

Active

Amphenol LTW

NMEA 2000, MICRO, 4A, 05 PINS, R

Technical Specifications

Parameters and characteristics for this part

Specification	HPC-05PFFP-SF8001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	M12-5
Shielding	Shielded
Termination	Solder
Voltage Rating	60 VDC

Part	Ingress Protection	Contact Material	Current Rating (Amps)	Shielding	Termination	Material Flammability Rating	Color	Shell Material	Insert Material	Contact Finish - Mating	Voltage Rating	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Mounting Feature	Mounting Type	Connector Type	Shell Size - Insert
Amphenol LTW HPC-05PFFP-SF8001	IP68 - Dust Tight Waterproof	Copper Alloy	4 A	Shielded	Solder	UL94 V-0	Black	Glass Filled Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled	Gold	60 VDC	Keyed	-40 °C	105 ░C	Plastic	Bulkhead - Front Side Nut	Panel Mount Through Hole	Receptacle Female Sockets	M12-5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 13.08

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder

Technical documentation and resources

No documents available
