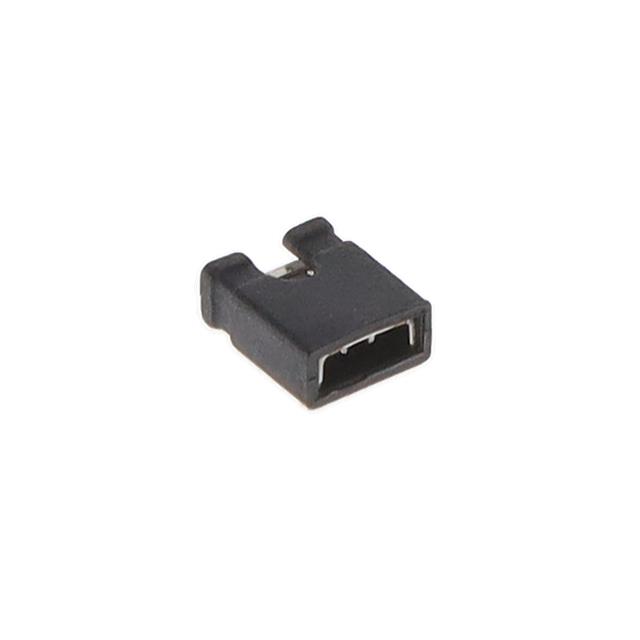

AKSPT/G BLACK

Active

Assmann WSW Components

CONN SHUNT 2.54MM GOLD 6.0MM BLK

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN SHUNT 2.54MM GOLD 6.0MM BLK

Technical Specifications

Parameters and characteristics for this part

Specification	AKSPT/G BLACK

Color	Black
Contact Finish	Gold
Contact Finish Thickness	Flash
Current Rating (Amps)	3 A
Gender	Female Sockets
Height [z]	6 mm
Height [z]	0.236 "
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Open Top

Part	Contact Finish	Housing Material	Material Flammability Rating	Current Rating (Amps)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Color	Gender	Pitch [x]	Pitch [x]	Height [z]	Height [z]	Type	Contact Finish Thickness
Assmann WSW Components AKSPT/G RED	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	3 A	1 x 2	2	Red	Female Sockets	2.54 mm	0.1 in	6 mm	0.236 "	Open Top
Assmann WSW Components AKSPT/G BLACK	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	3 A	1 x 2	2	Black	Female Sockets	2.54 mm	0.1 in	6 mm	0.236 "	Open Top	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Black Open Top 0.100" (2.54mm) Gold
