MF-VS210SS-0

Obsolete

Bourns Inc.

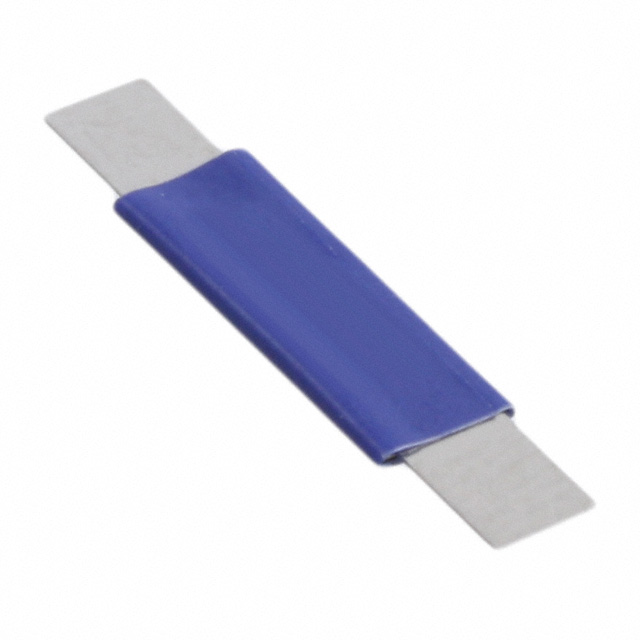

PTC RESET FUSE 16V 2.1A STRAP

Search across all available documentation for this part.

Obsolete

Bourns Inc.

PTC RESET FUSE 16V 2.1A STRAP

Technical Specifications

Parameters and characteristics for this part

Specification	MF-VS210SS-0

Current - Hold (Ih) (Max) [Max]	2.1 A
Current - Max [Max]	100 A
Current - Trip (It)	4.7 A
Mounting Type	User Defined
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Strap
Resistance - Initial (Ri) (Min) [Min]	18 mOhms
Resistance - Post Trip (R1) (Max) [Max]	60 mOhms
Thickness (Max) [Max]	0.9 mm
Thickness (Max) [Max]	0.035 in
Time to Trip	5 s
Type	Polymeric
Voltage - Max [Max]	16 V

Part	Package / Case	Thickness (Max) [Max]	Thickness (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Current - Trip (It)	Resistance - Post Trip (R1) (Max) [Max]	Voltage - Max [Max]	Time to Trip	Current - Hold (Ih) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Current - Max [Max]	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Bourns Inc. MF-VS210SS-0	Strap	0.9 mm	0.035 in	18 mOhms	4.7 A	60 mOhms	16 V	5 s	2.1 A	85 °C	-40 °C	User Defined	Polymeric	100 A
Bourns Inc. MF-VS210N-0	Strap	0.9 mm	0.035 in	18 mOhms	4.7 A	60 mOhms	12 V	5 s	2.1 A	85 °C	-40 °C	User Defined	Polymeric	100 A	cURus TUV	1.22 in	3.75 mm	31 mm	0.148 in
Bourns Inc. MF-VS175N-0	Strap			29 mOhms	3.5 A	102 mOhms	12 V	3 s	1.75 A	85 °C	-40 °C	User Defined	Polymeric	100 A	cURus TUV
Bourns Inc. MF-VS170S-0	Strap	0.9 mm	0.035 in	30 mOhms	3.4 A	105 mOhms	16 V	3 s	1.7 A	85 °C	-40 °C	User Defined	Polymeric	100 A		0.669 "	5.2 mm	17 mm	0.205 "
Bourns Inc. MF-VS170N-0	Strap	0.9 mm	0.035 in	30 mOhms	3.4 A	105 mOhms	12 V	3 s	1.7 A	85 °C	-40 °C	User Defined	Polymeric	100 A	cURus TUV	0.906 in	3.75 mm	23 mm	0.148 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Polymeric PTC Resettable Fuse 16V 2.1 A Ih User Defined Strap
