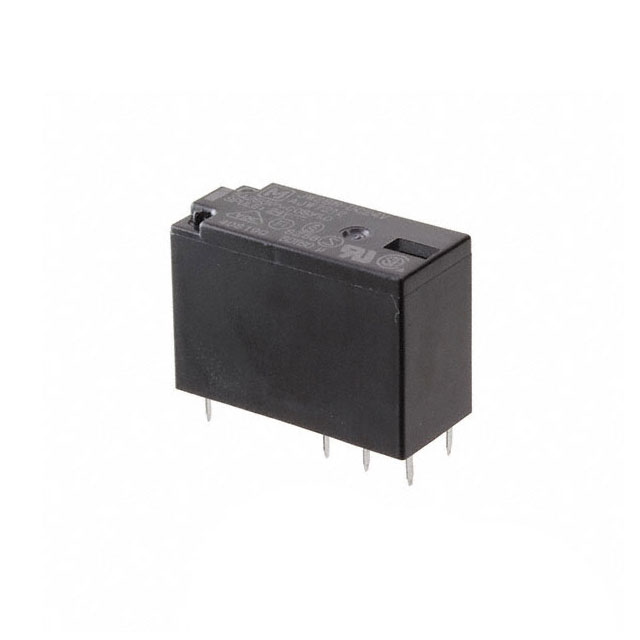

JW2SN-DC24V

Active

Panasonic Electric Works

RELAY GEN PURPOSE DPDT 5A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Standards Chart +1

JW2SN-DC24V

Active

Panasonic Electric Works

RELAY GEN PURPOSE DPDT 5A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes Standards Chart +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JW2SN-DC24V

Approval Agency	CQC, CSA, VDE, UR
Coil Current	22 mA
Coil Insulation	Class E
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Alloy
Contact Rating (Current)	5 A
Load - Max Switching	1250 VA, 150 W
Mounting Type	Through Hole
Must Operate Voltage	16.8 VDC
Must Release Voltage	2.4 VDC
Operate Time	15 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Sealed - Fully
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	PC Pin

JW2SN Series

Part	Coil Insulation	Must Operate Voltage	Contact Material	Switching Voltage [Max]	Mounting Type	Load - Max Switching	Coil Current	Contact Rating (Current)	Coil Type	Coil Resistance	Coil Voltage	Relay Type	Approval Agency	Seal Rating	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Operate Time	Release Time	Contact Form	Termination Style
Panasonic Electric Works JW2SN-B-DC48V	Class B	33.6 VDC	Silver Alloy	30 VDC 250 VAC	Through Hole	150 W 1250 VA	11 mA	5 A	Non Latching	4.4 kOhms	48 VDC	General Purpose	CQC CSA UR VDE	Sealed - Fully	85 °C	-40 °C	4.8 VDC	15 ms	5 ms	DPDT (2 Form C)	PC Pin
Panasonic Electric Works JW2SN-B-DC12V	Class B	8.4 VDC	Silver Alloy	30 VDC 250 VAC	Through Hole	150 W 1250 VA	44 mA	5 A	Non Latching	270 Ohms	12 VDC	General Purpose	CQC CSA UR VDE	Sealed - Fully	85 °C	-40 °C	1.2 VDC	15 ms	5 ms	DPDT (2 Form C)	PC Pin
Panasonic Electric Works JW2SN-DC5V	Class E	3.5 VDC	Silver Alloy	30 VDC 250 VAC	Through Hole	150 W 1250 VA	106 mA	5 A	Non Latching	47 Ohms	5 VDC	General Purpose	CQC CSA UR VDE	Sealed - Fully	60 °C	-40 °C	0.5 VDC	15 ms	5 ms	DPDT (2 Form C)	PC Pin
Panasonic Electric Works JW2SN-DC24V	Class E	16.8 VDC	Silver Alloy	30 VDC 250 VAC	Through Hole	150 W 1250 VA	22 mA	5 A	Non Latching		24 VDC	General Purpose	CQC CSA UR VDE	Sealed - Fully	60 °C	-40 °C	2.4 VDC	15 ms	5 ms	DPDT (2 Form C)	PC Pin
Panasonic Electric Works JW2SN-B-DC18V	Class B	12.6 VDC	Silver Alloy	30 VDC 250 VAC	Through Hole	150 W 1250 VA	29 mA	5 A	Non Latching	611 Ohms	18 VDC	General Purpose	CQC CSA UR VDE	Sealed - Fully	85 °C	-40 °C	1.8 VDC	15 ms	5 ms	DPDT (2 Form C)	PC Pin
Panasonic Electric Works JW2SN-B-DC24V	Class B	16.8 VDC	Silver Alloy	30 VDC 250 VAC	Through Hole	150 W 1250 VA	22 mA	5 A	Non Latching		24 VDC	General Purpose	CQC CSA UR VDE	Sealed - Fully	85 °C	-40 °C	2.4 VDC	15 ms	5 ms	DPDT (2 Form C)	PC Pin
Panasonic Electric Works JW2SN-DC12V	Class E	8.4 VDC	Silver Alloy	30 VDC 250 VAC	Through Hole	150 W 1250 VA	44 mA	5 A	Non Latching	270 Ohms	12 VDC	General Purpose	CQC CSA UR VDE	Sealed - Fully	60 °C	-40 °C	1.2 VDC	15 ms	5 ms	DPDT (2 Form C)	PC Pin
Panasonic Electric Works JW2SN-DC60V	Class E	42 VDC	Silver Alloy	30 VDC 250 VAC	Through Hole	150 W 1250 VA		5 A	Non Latching		60 VDC	General Purpose	CQC CSA UR VDE	Sealed - Fully	60 °C	-40 °C	6 VDC	15 ms	5 ms	DPDT (2 Form C)	PC Pin
Panasonic Electric Works JW2SN-DC9V	Class E	6.3 VDC	Silver Alloy	30 VDC 250 VAC	Through Hole	150 W 1250 VA	58 mA	5 A	Non Latching	155 Ohms	9 VDC	General Purpose	CQC CSA UR VDE	Sealed - Fully	60 °C	-40 °C	0.9 VDC	15 ms	5 ms	DPDT (2 Form C)	PC Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.05
		10	$ 2.86
		25	$ 2.55
		50	$ 2.42
		100	$ 2.29
		300	$ 2.04
		500	$ 1.91
		1000	$ 1.78
		5000	$ 1.72
