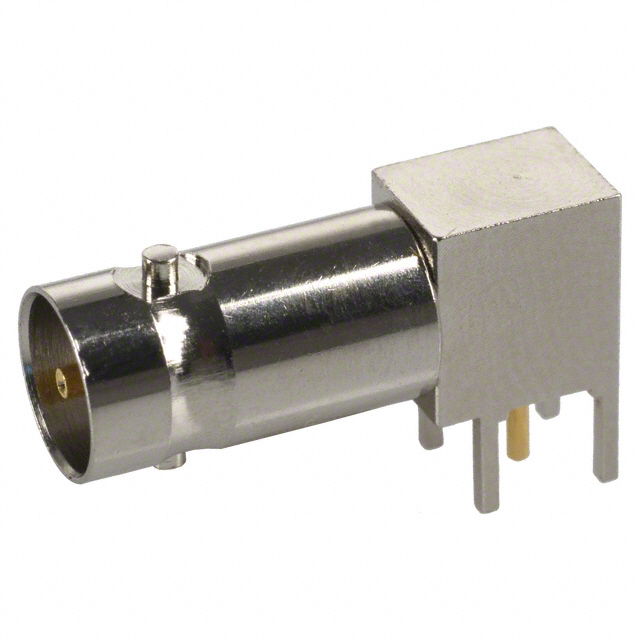

31-70255

Active

Amphenol RF

CONN MINI BNC JACK R/A 75OHM PCB

Search across all available documentation for this part.

Active

Amphenol RF

CONN MINI BNC JACK R/A 75OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	31-70255

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Mini, BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Impedance	Frequency - Max [Max]	Includes	Body Material	Center Contact Plating	Mounting Type	Center Contact Material	Dielectric Material	Body Finish	Contact Termination	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Connector Style	Mating Cycles	Number of Ports	Fastening Type	Cable Group	Housing Color	Insertion Loss	Voltage Rating
Amphenol RF 31-70251	75 Ohms	4 GHz	1 Connector 1 Contact 1 Ferrule	Brass	Gold	Free Hanging (In-Line)	Brass	Polytetrafluoroethylene (PTFE)	Nickel	Crimp	Male Pin Plug	85 °C	-40 °C	Crimp	BNC Mini	500	1	Bayonet Lock	735A AT&T 735 Belden 735A1	Silver	0.1 dB	500 V
Amphenol RF 31-70255	75 Ohms	4 GHz		Brass	Gold	Through Hole Right Angle	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Nickel	Solder	Female Socket Jack	85 °C	-40 °C	Solder	BNC Mini	500	1	Bayonet Lock		Silver	0.1 dB	500 V
Amphenol RF 31-70250	75 Ohms	4 GHz		Brass	Gold	Through Hole	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	Solder	Female Socket Receptacle	85 °C	-40 °C	Solder	BNC Mini	500	1	Bayonet Lock		Gold	0.1 dB	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC, Mini Connector Jack, Female Socket 75 Ohms Through Hole, Right Angle Solder
