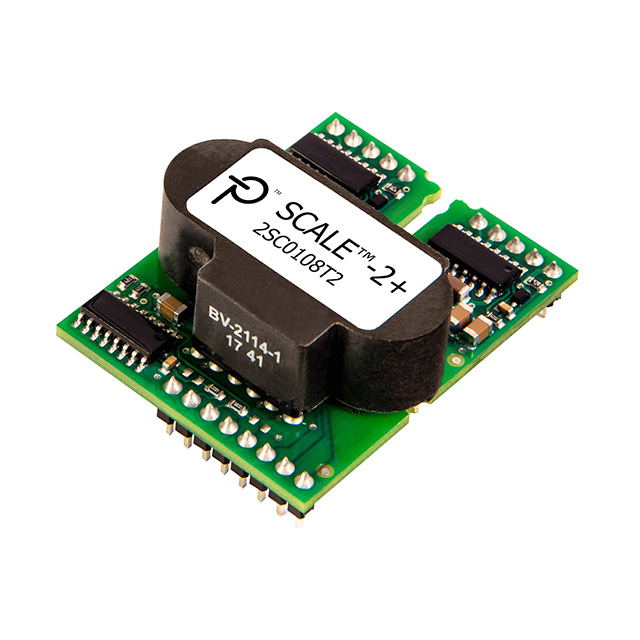

2SC0108T2F1-17

Active

Power Integrations

IGBT DRIVER, 14.5V-15.5V, MODULE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Power Integrations

IGBT DRIVER, 14.5V-15.5V, MODULE ROHS COMPLIANT: YES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High-Side or Low-Side Gate Driver IC Module

Technical documentation and resources

Specification	2SC0108T2F1-17	2SC0108 Series

Channel Type	Independent	Independent
Current - Peak Output (Source, Sink) [custom]	8 A	8 A
Current - Peak Output (Source, Sink) [custom]	8 A	8 A
Driven Configuration	High-Side, Low-Side	High-Side, Low-Side
Gate Type	IGBT	IGBT
High Side Voltage - Max (Bootstrap) [Max]	1700 V	1200 - 1700 V
Mounting Type	Surface Mount	Chassis Mount, Surface Mount
Number of Drivers	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Rise / Fall Time (Typ) [custom]	17 ns	17 ns
Rise / Fall Time (Typ) [custom]	15 ns	15 ns
Supplier Device Package	Module	Module
Voltage - Supply [Max]	15.5 V	15.5 V
Voltage - Supply [Min]	14.5 V	14.5 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Gate Type	Package / Case	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Driven Configuration	Supplier Device Package	Mounting Type	High Side Voltage - Max (Bootstrap) [Max]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Number of Drivers	Channel Type	Operating Temperature [Max]	Operating Temperature [Min]
Power Integrations 2SC0108T2G0C-17	14.5 V	15.5 V	IGBT	Module	17 ns	15 ns	High-Side, Low-Side	Module	Chassis Mount	1700 V	8 A	8 A	2	Independent	85 °C	-40 °C
Power Integrations 2SC0108T2D0-12	14.5 V	15.5 V	IGBT	Module	17 ns	15 ns	High-Side, Low-Side	Module	Surface Mount	1200 V	8 A	8 A	2	Independent	85 °C	-40 °C
Power Integrations 2SC0108T2G0-17	14.5 V	15.5 V	IGBT	Module	17 ns	15 ns	High-Side, Low-Side	Module	Surface Mount	1700 V	8 A	8 A	2	Independent	85 °C	-40 °C
Power Integrations 2SC0108T2F1-17	14.5 V	15.5 V	IGBT	Module	17 ns	15 ns	High-Side, Low-Side	Module	Surface Mount	1700 V	8 A	8 A	2	Independent	85 °C	-40 °C
