Q22F1ABXXB24AE

Active

APEM

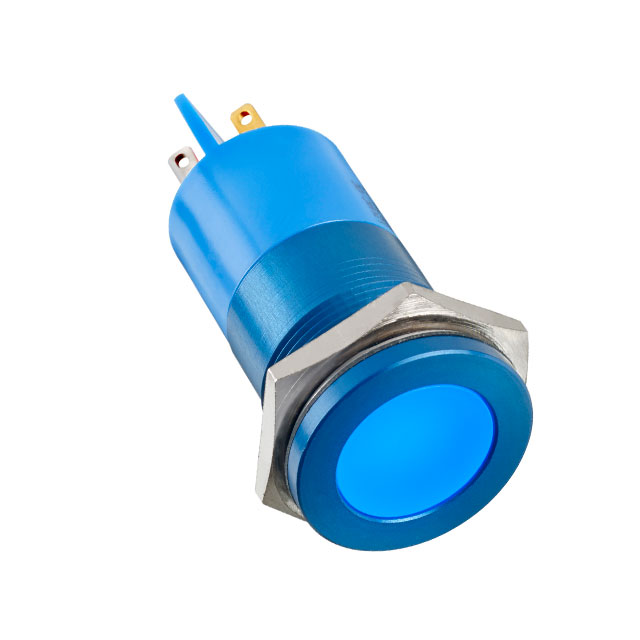

INDICATOR 24V 22MM FLUSH BLUE

Search across all available documentation for this part.

Active

APEM

INDICATOR 24V 22MM FLUSH BLUE

Technical Specifications

Parameters and characteristics for this part

Part	Panel Cutout Shape	Lens Color	Ingress Protection	Termination Style	Lamp Color	Ratings	Lens Transparency	Current	Type	Voltage	Lens Size [diameter]	Millicandela Rating	Panel Cutout Dimensions	Panel Cutout Dimensions
APEM Q22F1ABXXB24AE	Round	Blue	IP67	Solder Lug	Blue	AC/DC	Diffused	40 mA	LED	24 V	18 mm	101 mcd	22.1 mm	0.87 in
APEM Q22F1ABXXB220E	Round	Blue	IP67	Solder Lug	Blue	AC	Diffused	3 mA	LED	220 V	18 mm	101 mcd	22.1 mm	0.87 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Panel Indicator Blue Diffused 24V 40mA Solder Lug

Technical documentation and resources
