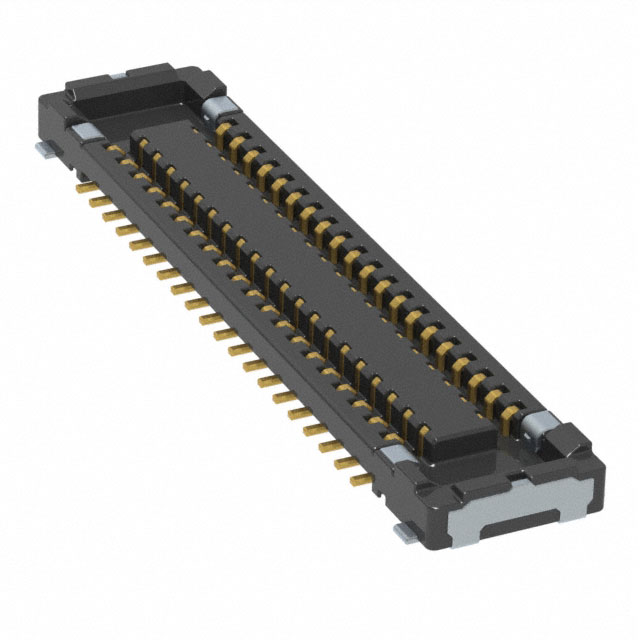

AXG7400J7

Obsolete

Panasonic Electric Works

CONN SOCKET 40POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXG7400J7

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.023 in
Height Above Board	0.59 mm
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions [custom]	40
Number of Positions [custom]	2
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Height Above Board	Height Above Board	Mounting Type	Features	Contact Finish	Mated Stacking Heights	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Number of Positions
Panasonic Electric Works AXG7400J7	0.023 in	0.59 mm	Surface Mount	Solder Retention	Gold	0.6 mm	0.35 mm	0.014 in	2	40	2	Socket Center Strip Contacts
Panasonic Electric Works AXG740044	0.023 in	0.59 mm	Surface Mount	Solder Retention	Gold	0.6 mm	0.35 mm	0.014 in	2			Socket Center Strip Contacts	40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

42 (40 + 2 Power) Position Connector Socket, Center Strip Contacts Surface Mount Gold
