HPCC4FT

Active

Switchcraft Inc.

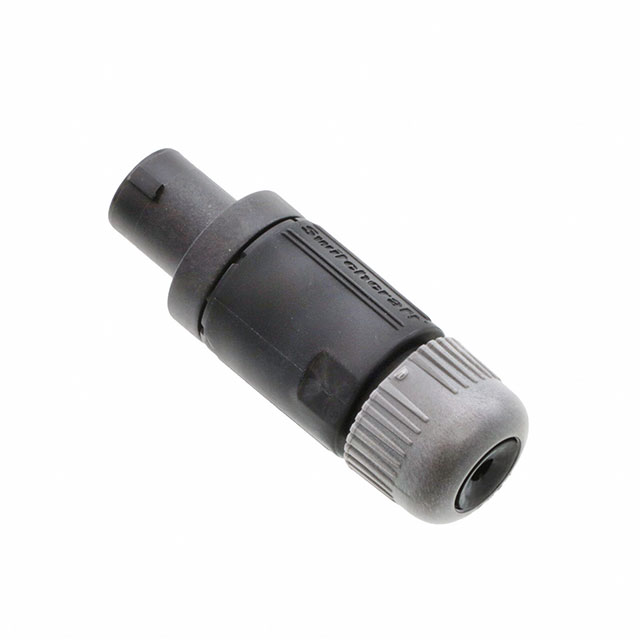

CONN CIRC PLUG 4POS SILVER QC

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN CIRC PLUG 4POS SILVER QC

Technical Specifications

Parameters and characteristics for this part

Specification	HPCC4FT

Applications	Audio, Medical, Industrial
Cable Opening [diameter]	14.22 mm
Cable Opening [diameter]	0.56 in
Color	Black
Connector Type	Plug, Non-Gendered
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	50 A
Fastening Type	Push-Twist, Latch Lock
Ingress Protection	IP25
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

CONN CIRC PLUG 4POS SILVER QC

Part	Shielding	Applications	Mounting Type	Cable Opening [diameter]	Cable Opening [diameter]	Primary Material	Insert Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Color	Material Flammability Rating	Orientation	Fastening Type	Contact Finish - Mating	Connector Type	Current Rating (Amps)	Termination	Termination	Termination	Contact Material	Ingress Protection
Switchcraft Inc. HPCC4FT	Unshielded	Audio, Industrial, Medical	Free Hanging (In-Line)	14.22 mm	0.56 in	Plastic	Thermoplastic	4	85 °C	-55 °C	Black	UL94 V-0	Keyed	Latch Lock, Push-Twist	Silver	Plug, Non-Gendered	50 A	0.25 in	6.3 mm	Quick Connect	Copper Alloy	IP25

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (Power) Position Circular Connector Plug, Non-Gendered Quick Connect - 0.250" (6.3mm)
