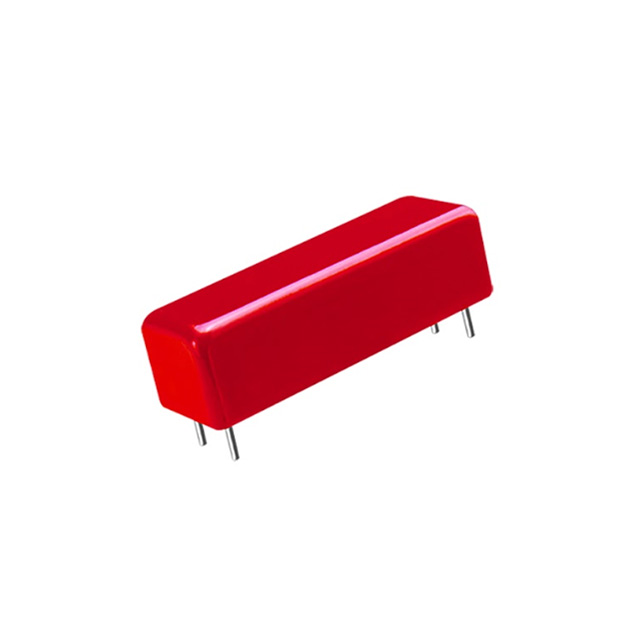

7103-12-1001

Active

Coto Technology

RELAY REED 3PST 500MA 12V

Search across all available documentation for this part.

Active

Coto Technology

RELAY REED 3PST 500MA 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY REED 3PST 500MA 5V

Part	Switching Voltage	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Contact Rating (Current)	Operate Time	Contact Form	Must Operate Voltage	Coil Resistance	Coil Type	Mounting Type	Termination Style	Release Time	Coil Current	Features
Coto Technology 7103-05-1100	200 VDC, 200 VAC	0.4 VDC	85 °C	-20 C	5 VDC	0.5 A	1 ms	3PST-NO (3 Form A)	3.75 VDC	100 Ohms	Non Latching	Through Hole	PC Pin	0.1 ms	50 mA
Coto Technology 7103-12-1001	200 VDC, 200 VAC	1 VDC	85 °C	-20 C	12 VDC	0.5 A	1 ms	3PST-NO (3 Form A)	9 VDC	800 Ohms	Non Latching	Through Hole	PC Pin	0.1 ms	15 mA	Diode
Coto Technology 7103-12-1000	200 VDC, 200 VAC	1 VDC	85 °C	-20 C	12 VDC	0.5 A	1 ms	3PST-NO (3 Form A)	9 VDC	800 Ohms	Non Latching	Through Hole	PC Pin	0.1 ms	15 mA
Coto Technology 7103-05-1011	200 VDC, 200 VAC	0.4 VDC	85 °C	-20 C	5 VDC	0.5 A	1 ms	3PST-NO (3 Form A)	3.75 VDC	100 Ohms	Non Latching	Through Hole	PC Pin	0.1 ms	50 mA	Diode, Electrostatic Shield
Coto Technology 7103-24-1010	200 VDC, 200 VAC	2 VDC	85 °C	-20 C	24 VDC	0.5 A	1 ms	3PST-NO (3 Form A)	18 VDC	2.4 kOhms	Non Latching	Through Hole	PC Pin	0.1 ms	10 mA	Electrostatic Shield
Coto Technology 7103-12-1011	200 VDC, 200 VAC	1 VDC	85 °C	-20 C	12 VDC	0.5 A	1 ms	3PST-NO (3 Form A)	9 VDC	800 Ohms	Non Latching	Through Hole	PC Pin	0.1 ms	15 mA	Diode, Electrostatic Shield
Coto Technology 7103-12-1010	200 VDC, 200 VAC	1 VDC	85 °C	-20 C	12 VDC	0.5 A	1 ms	3PST-NO (3 Form A)	9 VDC	800 Ohms	Non Latching	Through Hole	PC Pin	0.1 ms	15 mA	Electrostatic Shield

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED 3PST 500MA 12V
