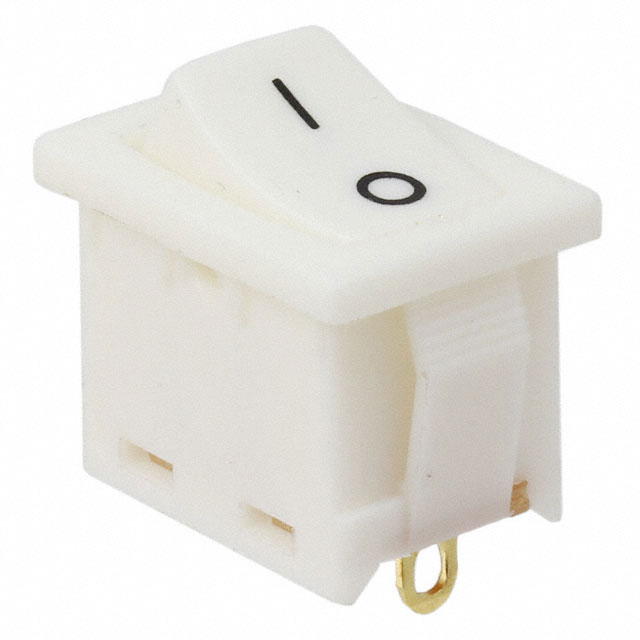

R1966AWHTWHTFS

Active

E-Switch

SWITCH ROCKER SPST 15A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER SPST 15A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Mounting Type	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Color - Actuator/Cap	Switch Function	Actuator Marking	Circuit	Current Rating (Amps)	Actuator Type	Mechanical Life
E-Switch R1966AWHTWHTIR	PC Pin	Panel Mount Right Angle Snap-In	10000 Cycles	65 °C	-30 ░C	125 V	White	On-Off	ON OFF Vertical	SPST	15 A	Concave (Curved)	30000 Steps
E-Switch R1966AWHTWHTFS	Solder Lug	Panel Mount Snap-In	10000 Cycles	65 °C	-30 ░C	125 V	White	On-Off	O -	SPST	15 A	Concave (Curved)	30000 Steps
E-Switch R1966AWHTWHTFL	PC Pin	Panel Mount Right Angle Snap-In	10000 Cycles	65 °C	-30 ░C	125 V	White	On-Off	O -	SPST	15 A	Concave (Curved)	30000 Steps
E-Switch R1966AWHTWHTFF	Quick Connect - 0.187" (4.7mm)	Panel Mount Snap-In	10000 Cycles	65 °C	-30 ░C	125 V	White	On-Off	O -	SPST	15 A	Concave (Curved)	30000 Steps
E-Switch R1966AWHTWHTIF	Quick Connect - 0.187" (4.7mm)	Panel Mount Snap-In	10000 Cycles	65 °C	-30 ░C	125 V	White	On-Off	ON OFF Vertical	SPST	15 A	Concave (Curved)	30000 Steps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10000	$ 1.59

General part information

Rocker Switch SPST 15A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
