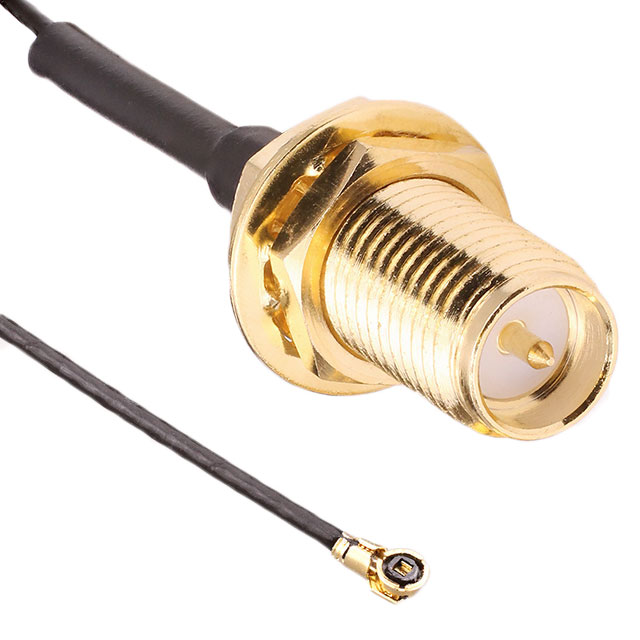

CSJ-RGFB-100-MHF4

Active

TE Connectivity Linx

CBL ASSY RPSMA-MHF4 JK-PL 3.937"

Search across all available documentation for this part.

Active

TE Connectivity Linx

CBL ASSY RPSMA-MHF4 JK-PL 3.937"

Technical Specifications

Parameters and characteristics for this part

Specification	CSJ-RGFB-100-MHF4

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
2nd Connector Mounting Type	Free Hanging (In-Line)
Cable Type	Coaxial Cable
Cable Type [diameter]	0.81 mm
Color	Black
Frequency - Max [Max]	6000 MHz
Overall Impedance	50 Ohms

Part	Color	1st Connector Mounting Type	1st Connector	1st Connector Mounting Feature	Cable Type	Cable Type [diameter]	Frequency - Max [Max]	2nd Connector Mounting Type	Overall Impedance
TE Connectivity Linx CSJ-RGFB-100-MHF3	Black	Panel Mount	RP-SMA Jack	Bulkhead - Front Side Nut	Coaxial Cable	0.81 mm	6000 MHz	Free Hanging (In-Line)	50 Ohms
TE Connectivity Linx CSJ-RGFB-100-MHF4	Black	Panel Mount	RP-SMA Jack	Bulkhead - Front Side Nut	Coaxial Cable	0.81 mm	6000 MHz	Free Hanging (In-Line)	50 Ohms
TE Connectivity Linx CSJ-RGFB-200-MHF3	Black	Panel Mount	RP-SMA Jack	Bulkhead - Front Side Nut	Coaxial Cable	0.81 mm	6000 MHz	Free Hanging (In-Line)	50 Ohms
TE Connectivity Linx CSJ-RGFB-200-MHF4	Black	Panel Mount	RP-SMA Jack	Bulkhead - Front Side Nut	Coaxial Cable	0.81 mm	6000 MHz	Free Hanging (In-Line)	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial 0.81mm OD Coaxial Cable 3.937" (100.00mm)
