Q-1V017000R.75M

Active

Amphenol Custom Cable

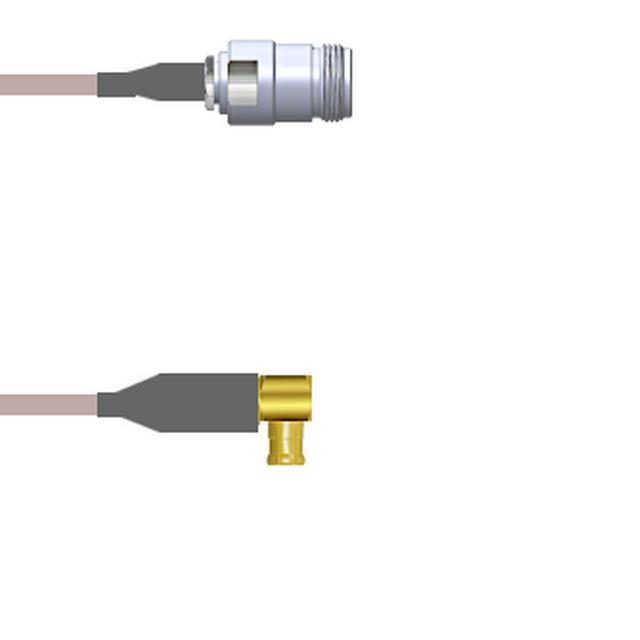

COAX CBL MCX TO N-TYPE 29.5"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1V017000R.75M

Active

Amphenol Custom Cable

COAX CBL MCX TO N-TYPE 29.5"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1V017000R.75M

1st Connector	Right Angle, MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-1V0170 Series

Part	2nd Contact Gender	Features	2nd Connector	Color	Cable Type	Length	Length	Length	Overall Impedance	1st Connector	1st Connector Mounting Type	1st Contact Gender	Style	Frequency - Max [Max]	2nd Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-1V017000R003M	Female	Shielded	N-Type Jack	Copper	RG-316 DB	3 m	118.1 in	9.8 '	50 Ohms	MCX Plug Right Angle	Free Hanging (In-Line)	Male	MCX to N-Type	6000 MHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-1V017000R108i	Female	Shielded	N-Type Jack	Copper	RG-316 DB	2.7 m	108 in	9 ft	50 Ohms	MCX Plug Right Angle	Free Hanging (In-Line)	Male	MCX to N-Type	6000 MHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-1V017000R024i	Female	Shielded	N-Type Jack	Copper	RG-316 DB	609.6 mm	24 "		50 Ohms	MCX Plug Right Angle	Free Hanging (In-Line)	Male	MCX to N-Type	6000 MHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-1V017000R2.5M	Female	Shielded	N-Type Jack	Copper	RG-316 DB	2.5 m	98.4 in	8.2 '	50 Ohms	MCX Plug Right Angle	Free Hanging (In-Line)	Male	MCX to N-Type	6000 MHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-1V017000R.75M	Female	Shielded	N-Type Jack	Copper	RG-316 DB	750 mm	29.53 "		50 Ohms	MCX Plug Right Angle	Free Hanging (In-Line)	Male	MCX to N-Type	6000 MHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-1V017000R048i	Female	Shielded	N-Type Jack	Copper	RG-316 DB	1200 mm	48 in	4 ft	50 Ohms	MCX Plug Right Angle	Free Hanging (In-Line)	Male	MCX to N-Type	6000 MHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-1V017000R.25M	Female	Shielded	N-Type Jack	Copper	RG-316 DB				50 Ohms	MCX Plug Right Angle	Free Hanging (In-Line)	Male	MCX to N-Type	6000 MHz	Free Hanging (In-Line)	9.843 "	250 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 225.80
		25	$ 223.25
		50	$ 220.71
		100	$ 218.17
		250	$ 215.62

Description

General part information

Q-1V0170 Series

Cable Assembly Coaxial MCX to N-Type RG-316 DB 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
