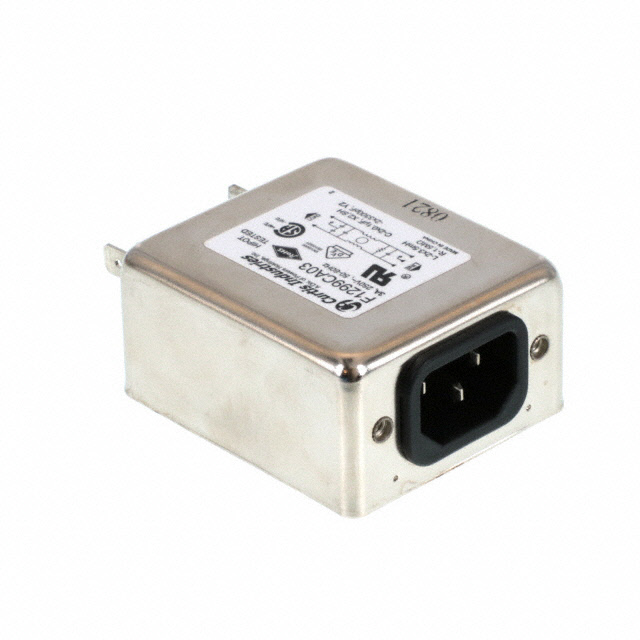

F1299CA06

Active

Curtis Industries

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Curtis Industries

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	F1299CA06

Accomodates a Fuse	False
Approval Agency	CSA, TUV, UL
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	6 A
Current Rating - Filter	6 A
Filter Type	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Screw Hole
Panel Cutout Dimensions [x]	30.5 mm
Panel Cutout Dimensions [y]	22.9 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Connector Style	Termination	Termination	Termination	Accomodates a Fuse	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Filter Type	Mounting Type	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Connector Type	Current Rating - Filter	Approval Agency
Curtis Industries F1299CA06	IEC 320-C14	0.25 in	6.3 mm	Quick Connect		22.9 mm	30.5 mm	Filtered (EMI, RFI) - Commercial	Panel Mount, Screw Hole	250 VAC	6 A	Male Blades, Receptacle	6 A	CSA, TUV, UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 21.11

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Screw Hole
