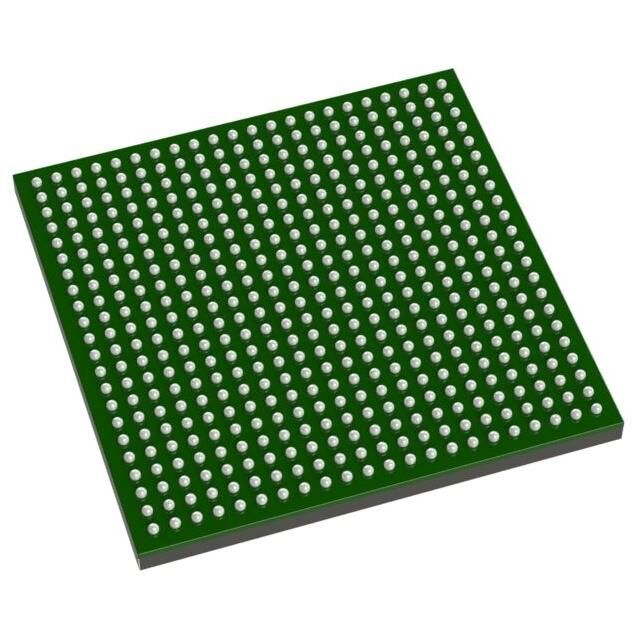

XC7Z020-3CLG484E
ActiveAMD
PSOC, ARM CORTEX-A9, 866MHZ, CSBGA-484
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
XC7Z020-3CLG484E
ActiveAMD
PSOC, ARM CORTEX-A9, 866MHZ, CSBGA-484
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | XC7Z020-3CLG484E |
|---|---|
| Architecture | MCU, FPGA |
| Connectivity | UART/USART, EBI/EMI, USB OTG, MMC/SD/SDIO, I2C, SPI, CANbus, Ethernet |
| Core Processor | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ |
| Number of I/O | 130 I/O |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | CSPBGA, 484-LFBGA |
| Peripherals | DMA |
| Primary Attributes | 85K, Artix™-7 FPGA |
| RAM Size | 256 KB |
| Speed | 866 MHz |
| Supplier Device Package | 484-CSPBGA (19x19) |
XC7Z020 Series
| Part | Suggested Programming Environment | Contents | Utilized IC / Part | Note | Interconnect System | For Use With/Related Products | Platform | Type | Peripherals | Operating Temperature [Min] | Operating Temperature [Max] | Connectivity | Primary Attributes | Package / Case | Architecture | Core Processor | Supplier Device Package | Number of I/O | RAM Size | Speed |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ISE Vivado | Board(s) Cable(s) Accessories | XC7Z020 | J = Japan version does not ship with a power supply | FMC Pmod | XC7Z020 | Zynq-7000 AP SoC ZC702 Japan | FPGA + MCU/MPU SoC | |||||||||||||
DMA | 0 °C | 85 °C | CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG | 85K Artix™-7 FPGA | 484-LFBGA CSPBGA | MCU FPGA | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | 484-CSPBGA (19x19) | 130 I/O | 256 KB | 667 MHz | |||||||||
DMA | 0 °C | 85 °C | CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG | 85K Artix™-7 FPGA | 400-LFBGA CSPBGA | MCU FPGA | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | 400-CSPBGA (17x17) | 130 I/O | 256 KB | 667 MHz | |||||||||
DMA | 0 °C | 100 °C | CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG | 85K Artix™-7 FPGA | 400-LFBGA CSPBGA | MCU FPGA | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | 400-CSPBGA (17x17) | 130 I/O | 256 KB | 866 MHz | |||||||||
DMA | 0 °C | 85 °C | CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG | 85K Artix™-7 FPGA | 484-LFBGA CSPBGA | MCU FPGA | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | 484-CSPBGA (19x19) | 130 I/O | 256 KB | 766 MHz | |||||||||
DMA | 0 °C | 100 °C | CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG | 85K Artix™-7 FPGA | 484-LFBGA CSPBGA | MCU FPGA | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | 484-CSPBGA (19x19) | 130 I/O | 256 KB | 866 MHz | |||||||||
DMA | -40 C | 100 °C | CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG | 85K Artix™-7 FPGA | 400-LFBGA CSPBGA | MCU FPGA | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | 400-CSPBGA (17x17) | 130 I/O | 256 KB | 667 MHz | |||||||||
DMA | -40 C | 100 °C | CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG | 85K Artix™-7 FPGA | 400-LFBGA CSPBGA | MCU FPGA | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | 400-CSPBGA (17x17) | 130 I/O | 256 KB | 667 MHz | |||||||||
ISE Vivado | Accessories Board(s) Cable(s) Power Supply | XC7Z020 | FMC Pmod | XC7Z020 | Zynq-7000 AP SoC ZC702 Video and Imaging CES | FPGA + MCU/MPU SoC | ||||||||||||||
DMA | 0 °C | 100 °C | CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG | 85K Artix™-7 FPGA | 484-LFBGA CSPBGA | MCU FPGA | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | 484-CSPBGA (19x19) | 130 I/O | 256 KB | 766 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
XC7Z020 Series
Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ System On Chip (SOC) IC Zynq®-7000 Artix™-7 FPGA, 85K Logic Cells 866MHz 484-CSPBGA (19x19)
