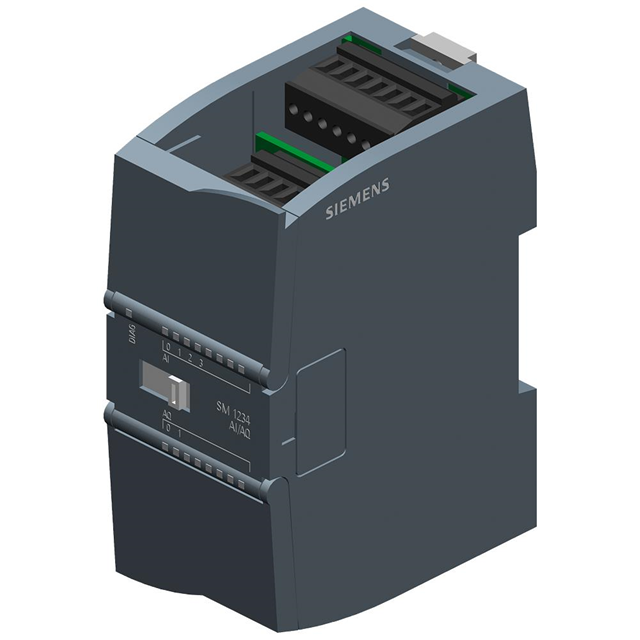

Specification	6ES72344HE320XB0

Approval Agency	FM, UL, CE, CSA
For Use With/Related Products	SIMATIC S7-1200
Ingress Protection	IP20
Input Types	Analog
Mounting Type	DIN Rail
Number of Inputs	4
Number of Outputs	2
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Output Type	Analog
Termination Style	Screw Terminal
Type	Output (I/O) Module, Input
Voltage - Supply	24 VDC

6ES72344 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Approval Agency	Ingress Protection	Voltage - Supply	Mounting Type	Termination Style	Number of Inputs	Input Types	Type	For Use With/Related Products	Number of Outputs	Output Type
Siemens 6ES72344HE320XB0	60 °C	-20 °C	CE CSA FM UL	IP20	24 VDC	DIN Rail	Screw Terminal	4	Analog	Input Output (I/O) Module	SIMATIC S7-1200	2	Analog

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
