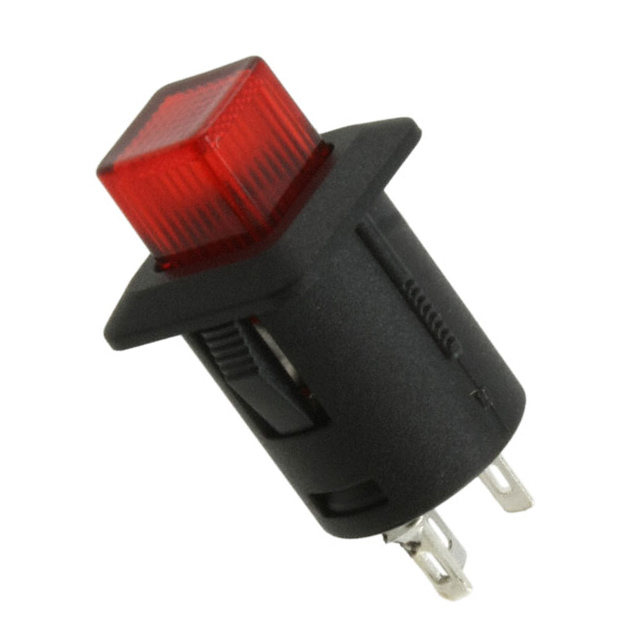

GPB554DL05BR

Obsolete

CW Industries

SWITCH PUSHBUTTON SPST 6A 14V

Search across all available documentation for this part.

Obsolete

CW Industries

SWITCH PUSHBUTTON SPST 6A 14V

Technical Specifications

Parameters and characteristics for this part

Specification	GPB554DL05BR

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPST
Color - Actuator/Cap	Red
Current Rating (Amps)	6 A
Illumination Type, Color	Red, LED
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [diameter]	12.1 mm
Switch Function	Off-On
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - DC	14 V

Part	Actuator Marking	Switch Function	Circuit	Termination Style	Color - Actuator/Cap	Current Rating (Amps)	Illumination Type, Color	Actuator Type	Type	Panel Cutout Dimensions [diameter]	Mounting Type	Voltage Rating - DC
CW Industries GPB554DL05BR	No Marking	Off-On	SPST	Solder Lug	Red	6 A	LED Red	Button Square	Illuminated Standard	12.1 mm	Panel Mount Snap-In	14 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch SPST Standard, Illuminated Panel Mount, Snap-In
