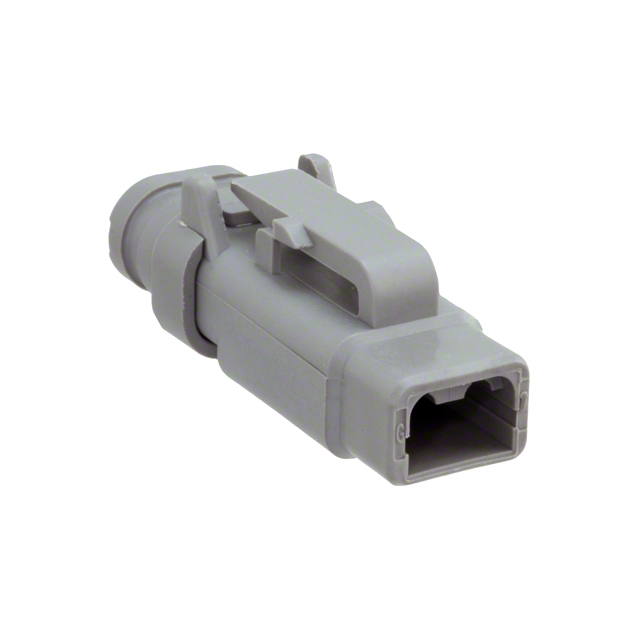

DTM06-2S-E007

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 2POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DTM06-2S-E007

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 2POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DTM06-2S-E007

Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Shrink Boot Adapter, IP6K9K, IP68
Insulation Material	Plastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

DTM06 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Termination	Note	Fastening Type	Number of Rows	Connector Type	Number of Positions	Mounting Type	Features	Insulation Material	Color	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing
TE Connectivity Raychem Cable Protection DTM06-2S-E004	-55 °C	125 °C	Female Socket	Crimp	Contacts Not Included	Latch Lock	1	Plug	2	Free Hanging (In-Line)	IP68 IP6K9K	Plastic	Black
TE Connectivity Raychem Cable Protection DTM06-08SA-E007	-55 °C	125 °C	Female Socket	Crimp	Contacts Not Included	Latch Lock	2	Plug	8	Free Hanging (In-Line)	IP68 IP6K9K Shrink Boot Adapter	Plastic	Gray
TE Connectivity Raychem Cable Protection DTM06-2S-E003	-55 °C	125 °C	Female Socket	Crimp	Contacts Not Included	Latch Lock	1	Plug	2	Free Hanging (In-Line)	Cap (Cover) IP68 IP6K9K	Glass Filled Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection DTM06-2S-E007	-55 °C	125 °C	Female Socket	Crimp	Contacts Not Included	Latch Lock	1	Plug	2	Free Hanging (In-Line)	IP68 IP6K9K Shrink Boot Adapter	Plastic
TE Connectivity Raychem Cable Protection DTM06-2S-P006	-55 °C	125 °C	Female Socket	Crimp	Contacts Not Included	Latch Lock	1	Plug	2	Free Hanging (In-Line)	IP68 IP6K9K Resistor	Thermoplastic	Gray
TE Connectivity Raychem Cable Protection DTM06-12SB-E003	-55 °C	125 °C	Female Socket	Crimp	Contacts Not Included	Latch Lock	2	Plug	12	Free Hanging (In-Line)	Cap (Cover) IP68 IP6K9K	Plastic	Black
TE Connectivity Raychem Cable Protection DTM06-3S-E004	-55 °C	125 °C	Female Socket	Crimp		Latch Lock	1	Plug		Free Hanging (In-Line)	IP68	Glass Filled Nylon Polyamide (PA)	Black	4.2 mm	0.165 in
TE Connectivity Raychem Cable Protection DTM06-6S	-55 °C	125 °C	Female Socket	Crimp	Contacts Not Included	Latch Lock	3	Plug	6	Free Hanging (In-Line)	IP68 IP6K9K	Plastic	Gray
TE Connectivity Raychem Cable Protection DTM06-12SD-EE04	-55 °C	150 °C	Female Socket	Crimp		Latch Lock	2	Plug	12	Free Hanging (In-Line)		Plastic	Brown	4.2 mm	0.165 in	0.28 in	7.11 mm
TE Connectivity Raychem Cable Protection DTM06-6S-E004	-55 °C	125 °C	Female Socket	Crimp		Latch Lock	2	Plug	6	Free Hanging (In-Line)		Plastic	Black	4.2 mm	0.165 in	0.28 in	7.11 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.41
		10	$ 2.05
		25	$ 1.92
		50	$ 1.83
		100	$ 1.74
		250	$ 1.63
		500	$ 1.56
		2000	$ 1.41
		4000	$ 1.34

Description

General part information

DTM06 Series

2 Rectangular Connectors - Housings Plug
