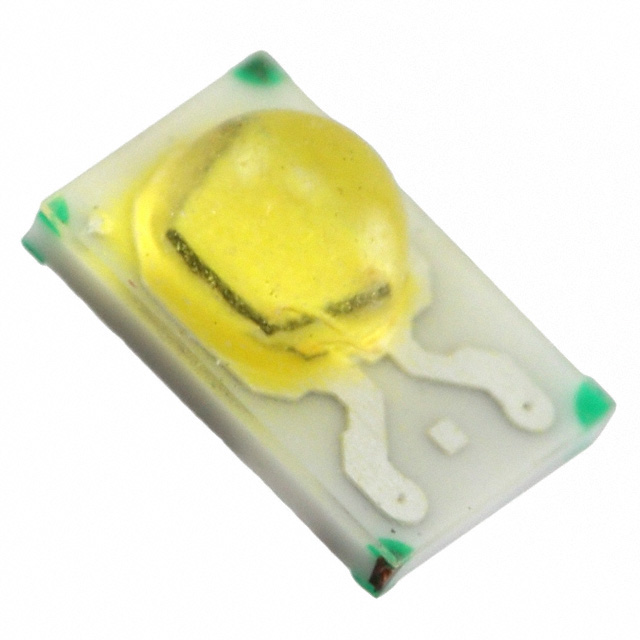

ELSH-F91N1-0CPGS-C4500

Active

Everlight Electronics Co Ltd

LED SHUEN NEUTRAL WHT 4500K 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ELSH-F91N1-0CPGS-C4500

Active

Everlight Electronics Co Ltd

LED SHUEN NEUTRAL WHT 4500K 2SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ELSH-F91N1-0CPGS-C4500

CCT (K)	4500 K
CCT (K) [Max]	4745 K
CCT (K) [Min]	4260 K
Color	Neutral, White
CRI (Color Rendering Index)	75
Current - Max [Max]	400 mA
Current - Test	350 mA
Flux @ 25°C, Current - Test [Max]	100 lm
Flux @ 25°C, Current - Test [Min]	90 lm
Flux @ 85°C, Current - Test	78 lm
Lumens/Watt @ Current - Test	76 lm/W
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric)
Size / Dimension [x]	0.177 in
Size / Dimension [x]	4.5 mm
Size / Dimension [y]	0.12 "
Size / Dimension [y]	3.05 mm
Thermal Resistance of Package [diameter]	10 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.4 V

ELSH-F91 Series

Part	CRI (Color Rendering Index)	Color	Package / Case	Viewing Angle	Current - Max [Max]	Thermal Resistance of Package [diameter]	Flux @ 85°C, Current - Test	CCT (K)	Lumens/Watt @ Current - Test	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Current - Test	CCT (K) [Max]	CCT (K) [Min]	Package / Case	Size / Dimension [y]	Wavelength	Wavelength [Min]	Wavelength [Max]	Luminous Flux @ Current/Temperature	Supplier Device Package	Thermal Resistance of Package [custom]
Everlight Electronics Co Ltd ELSH-F91N1-0CPGS-C4000	75	Neutral White	1812 (4532 Metric)	120 °	400 mA	10 °C/W	78 lm	4000 K	76 lm/W	90 lm	100 lm	Surface Mount	0.177 in	4.5 mm	0.12 "	3.05 mm	3.4 V	350 mA
Everlight Electronics Co Ltd ELSH-F91N1-0CPGS-C4500	75	Neutral White	1812 (4532 Metric)	120 °	400 mA	10 °C/W	78 lm	4500 K	76 lm/W	90 lm	100 lm	Surface Mount	0.177 in	4.5 mm	0.12 "	3.05 mm	3.4 V	350 mA	4745 K	4260 K
Everlight Electronics Co Ltd ELSH-F91C1-0CPGS-C5000	70	Cool White	1812 (4532 Metric)	120 °	400 mA	10 °C/W	78 lm	5000 K	76 lm/W	90 lm	100 lm	Surface Mount	0.177 in	4.5 mm	0.12 "	3.05 mm	3.4 V	350 mA	5310 K	4745 K
Everlight Electronics Co Ltd ELSH-F91C1-0LPGS-C5700	70	Cool White	1812 (4532 Metric)	120 °	400 mA	10 °C/W	78 lm		76 lm/W	90 lm	100 lm	Surface Mount	0.177 in	4.5 mm	0.12 "	3.05 mm	3.4 V	350 mA	6020 K	5310 K
Everlight Electronics Co Ltd ELSH-F91G3-0LPNM-DG1G3		Green		120 °	750 mA				38 lm/W			Surface Mount	0.12 in	3.05 mm	0.177 "		3.55 V				1218 3246 Metric	4.5 mm	528 nm	520 nm	535 nm	95 lm	SMD	6 °C/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.43
	Digi-Reel®	1	$ 3.43
	Tape & Reel (TR)	1200	$ 1.54
		2000	$ 1.47

Description

General part information

ELSH-F91 Series

LED Lighting SHUEN White, Neutral 4500K (4260K ~ 4745K) 3.4V 350mA 120° 1812 (4532 Metric)
