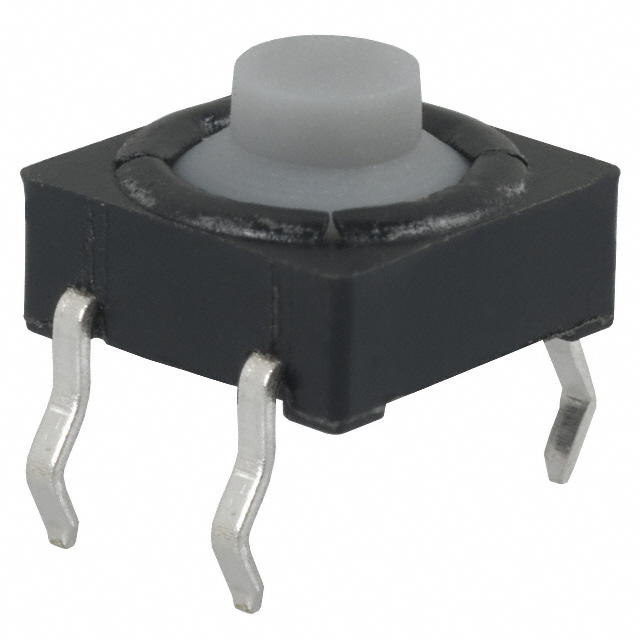

TL9000F120QG

Obsolete

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Obsolete

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TL9000F120QG

Actuator Height off PCB, Vertical	5 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Through Hole
Operating Force	120 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	7.8 mm
Outline [y]	7.8 mm
Switch Function	Off-Mom
Switch Travel	1 mm
Termination Style	PC Pin

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Termination Style	Illumination	Outline [y]	Outline [x]	Actuator Height off PCB, Vertical	Switch Travel	Actuator Type	Actuator Orientation	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Mounting Type	Contact Rating @ Voltage	Operating Force	Switch Function
E-Switch TL9000F120QG	PC Pin	Non-Illuminated	7.8 mm	7.8 mm	5 mm	1 mm	Standard	Top Actuated	100000 Cycles	-20 C	70 °C	SPST-NO	Through Hole	0.05 A, 12 VDC	120 gf	Off-Mom
