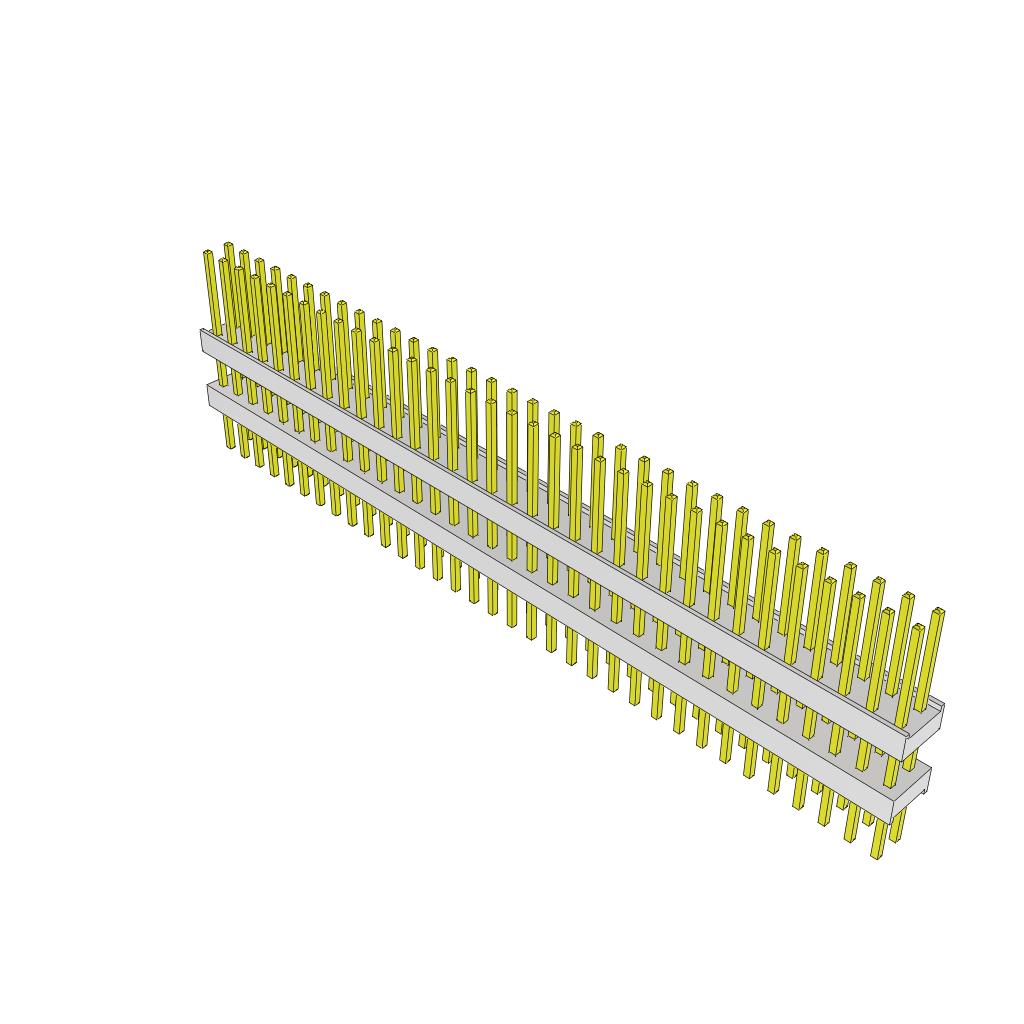

HW-34-11-G-D-360-215

Active

Samtec Inc.

CONN HDR 68POS 0.1 STACK T/H

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 68POS 0.1 STACK T/H

Technical Specifications

Parameters and characteristics for this part

Specification	HW-34-11-G-D-360-215

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	0.93 in
Length - Overall Pin [x]	23.622 mm
Length - Stack Height [z]	9.144 mm
Length - Stack Height [z]	0.36 in
Mounting Type	Through Hole
Number of Positions	68
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

Part	Pitch [x]	Pitch [x]	Color	Number of Positions	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Overall Pin [x]	Length - Overall Pin [x]	Contact Finish - Post (Mating)	Mounting Type	Length - Stack Height [z]	Length - Stack Height [z]	Number of Rows	Row Spacing [x]	Row Spacing	Termination
Samtec Inc. HW-34-11-G-D-360-215	2.54 mm	0.1 in	Black	68	0.25 Ám	10 Áin	0.93 in	23.622 mm	Gold	Through Hole	9.144 mm	0.36 in	2	0.1 in	2.54 mm	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.70

General part information

68 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
