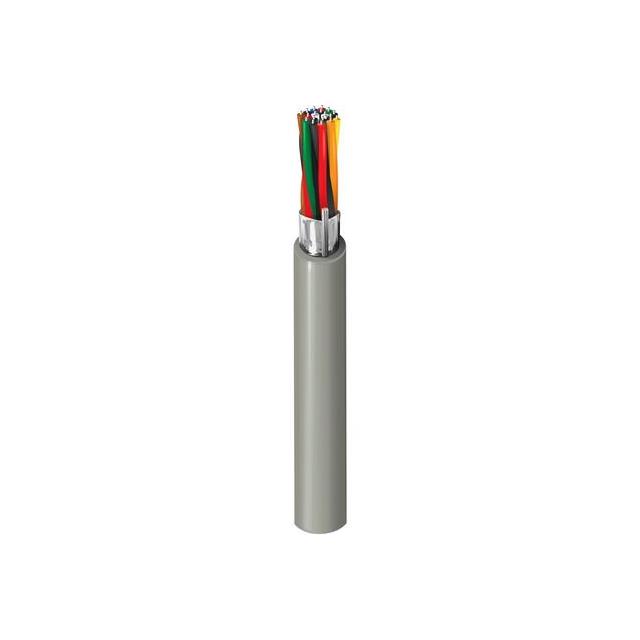

9309 060500

Active

Belden Inc.

MULTI-PAIR 18COND 22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 18COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9309 060500

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	9.22 mm
Jacket (Insulation) Diameter [diameter]	0.363 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.838 mm
Jacket (Insulation) Thickness	0.033 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	18
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Cable Type	Conductor Strand	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Voltage	Usage	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Length [x]	Length [x]	Conductor Material	Shield Material	Jacket Color	Jacket (Insulation) Material	Conductor Insulation	Ratings	Wire Gauge
Belden Inc. 9309 060500	Multi-Pair	Solid	Foil	-20 C	80 C	18	300 V	Audio Control Instrumentation	Drain Wire	0.838 mm	0.033 in	9.22 mm	0.363 in	100 %	500 '	152.4 m	Copper Tinned	Aluminum	Chrome	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	UL Style 2464	22 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 6.45

General part information

18 (9 Pair Twisted) Conductor Multi-Pair Cable Chrome 22 AWG Foil 500.0' (152.4m)
