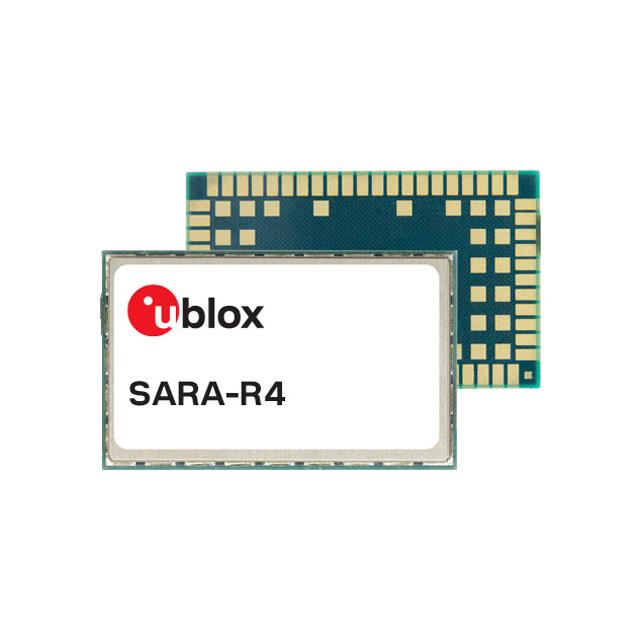

SARA-R410M-83B

Obsolete

u-blox

RF TXRX MOD CELL NAV SMD

Deep-Dive with AI

Search across all available documentation for this part.

SARA-R410M-83B

Obsolete

u-blox

RF TXRX MOD CELL NAV SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SARA-R410 Series

Cellular, Navigation CDMA, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA, LTE, UMTS Transceiver Module 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz Antenna Not Included Surface Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SARA-R410M-83B	SARA-R410 Series

Antenna Type	Antenna Not Included	Antenna Not Included, Castellation
Current - Receiving [Max]	190 mA	190 mA
Current - Receiving [Min]	100 mA	100 mA
Current - Transmitting [Max]	500 mA	490 - 500 mA
Current - Transmitting [Min]	100 mA	100 mA
Data Rate	375 kbps	375 kbps
Frequency	1.7 GHz, 2100 MHz, 1800 MHz, 850 MHz, 800 MHz, 900 MHz, 700 MHz, 1900 MHz	1.7 - 2100 MHz
Modulation	QPSK	QPSK
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	96-SMD Module	96-SMD Module
Power - Output	23 dBmW	23 dBmW
Protocol	GPS, HSPA, UMTS, LTE, GSM, Galileo, CDMA, GLONASS, GNSS, GPRS	4G LTE CAT M1/NB-IoT, GPS, HSPA, UMTS, LTE, GSM, Galileo, CDMA, GLONASS, GNSS, GPRS
RF Family/Standard	Cellular, Navigation	Cellular, Navigation
Sensitivity	-167 dBm	-167 - -107.5 dBm
Serial Interfaces	USB, GPIO, I2C, UART	UART, SPI, USB, I2C, GPIO

SARA-R410 Series

RF TXRX MOD CELL CAST IOT SMD

Part	Antenna Type	Serial Interfaces	Current - Transmitting [Min]	Current - Transmitting [Max]	Sensitivity	RF Family/Standard	Package / Case	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Protocol	Power - Output	Current - Receiving [Max]	Current - Receiving [Min]	Data Rate	Modulation
u-blox SARA-R410M-01B	Antenna Not Included, Castellation	I2C, SPI, UART, USB	100 mA	490 mA	-107.5 dBm	Cellular	96-SMD Module	1.7 GHz, 700 MHz, 850 MHz, 1900 MHz	85 °C	-40 °C	Surface Mount	4G LTE CAT M1/NB-IoT
u-blox SARA-R410M-83B	Antenna Not Included	GPIO, I2C, UART, USB	100 mA	500 mA	-167 dBm	Cellular, Navigation	96-SMD Module	1.7 GHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz	85 °C	-40 °C	Surface Mount	CDMA, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA, LTE, UMTS	23 dBmW	190 mA	100 mA	375 kbps	QPSK
