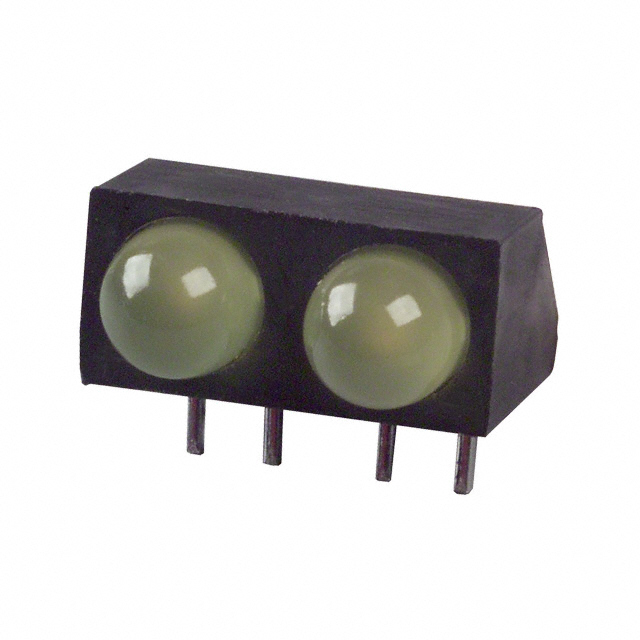

SSF-LXH2100YD

Active

Lumex Opto/Components Inc.

LED CBI 5MM 2-SEG YELLOW RA

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH2100YD

Active

Lumex Opto/Components Inc.

LED CBI 5MM 2-SEG YELLOW RA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXH2100YD	SSF-LXH2100 Series

Color	Yellow (x 2)	Red, Yellow (x 2)
Configuration	2 Wide	2 Wide
Lens Size	T-1 3/4	T-1 3/4
Lens Size	5 mm	5 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Type	Tinted, Diffused	Tinted, Diffused
Millicandela Rating	30 mcd	30 - 100 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Viewing Angle	60 °	60 °
Voltage Rating	2.1 V	1.8 - 2.1 V
Wavelength - Peak	585 nm	585 - 660 nm

SSF-LXH2100 Series

LED CBI 5MM 2-SEG RED RA

Part	Configuration	Mounting Type	Millicandela Rating	Color	Lens Type	Wavelength - Peak	Voltage Rating	Lens Size	Lens Size	Viewing Angle	Lens Style
Lumex Opto/Components Inc. SSF-LXH2100SRD	2 Wide	Through Hole, Right Angle	100 mcd	Red	Diffused, Tinted	660 nm	1.8 V	T-1 3/4	5 mm	60 °	Round with Domed Top
Lumex Opto/Components Inc. SSF-LXH2100YD	2 Wide	Through Hole, Right Angle	30 mcd	Yellow (x 2)	Diffused, Tinted	585 nm	2.1 V	T-1 3/4	5 mm	60 °	Round with Domed Top

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSF-LXH2100 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 Wide Yellow (x 2) Diffused, Tinted 2.1V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
