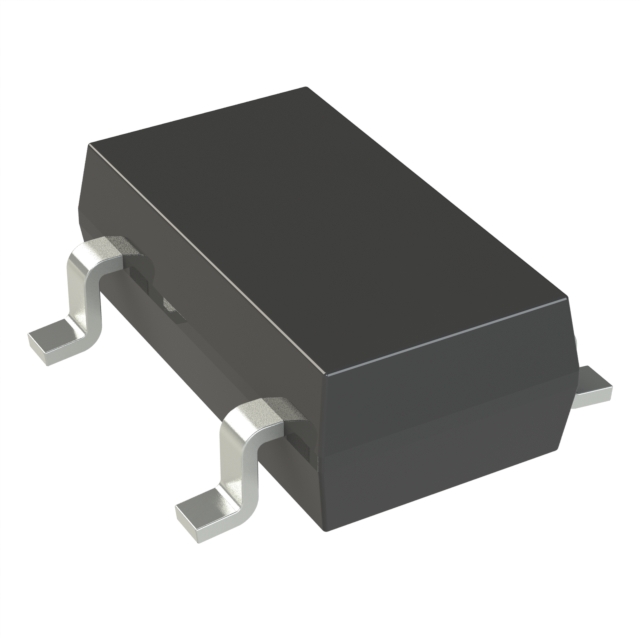

ST732M33R

Active

STMicroelectronics

LDO VOLTAGE REGULATOR, FIXED, 2.5 TO 28V IN, 600 MV DROP, 3.3V / 300A OUT, SOT-23-5

Search across all available documentation for this part.

Active

STMicroelectronics

LDO VOLTAGE REGULATOR, FIXED, 2.5 TO 28V IN, 600 MV DROP, 3.3V / 300A OUT, SOT-23-5

Technical Specifications

Parameters and characteristics for this part

Specification	ST732M33R

Current - Output	300 mA
Current - Quiescent (Iq)	10 µA
Current - Supply (Max) [Max]	200 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	SC-74A, SOT-753
Protection Features	Over Current, Over Temperature
Supplier Device Package	SOT-23-5
Voltage - Input (Max) [Max]	28 V
Voltage - Output (Min/Fixed)	3.3 V
Voltage Dropout (Max) [Max]	1.2 V

300mA, 28 V low-dropout voltage regulator, with 5 µA quiescent current

Part	Voltage Dropout (Max) [Max]	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Current - Supply (Max) [Max]	Output Configuration	Output Type	Current - Output	Number of Regulators	Protection Features	Package / Case
STMicroelectronics ST732M50R	1.2 V	5 V	125 °C	-40 °C	SOT-23-5	Surface Mount	10 µA	28 V	200 µA	Positive	1.81 mOhm	300 mA	1	Over Current Over Temperature	SC-74A SOT-753
STMicroelectronics ST732M30R	1.2 V		125 °C	-40 °C	SOT-23-5	Surface Mount	10 µA	28 V	200 µA	Positive	1.81 mOhm	300 mA	1	Over Current Over Temperature Short Circuit	SC-74A SOT-753
STMicroelectronics ST732M33R	1.2 V	3.3 V	125 °C	-40 °C	SOT-23-5	Surface Mount	10 µA	28 V	200 µA	Positive	1.81 mOhm	300 mA	1	Over Current Over Temperature	SC-74A SOT-753
STMicroelectronics ST732M36R	1.2 V	3.6 V	125 °C	-40 °C	SOT-23-5	Surface Mount	10 µA	28 V	200 µA	Positive	1.81 mOhm	300 mA	1	Over Current Over Temperature	SC-74A SOT-753
STMicroelectronics ST732M28R	1.2 V	2.8 V	125 °C	-40 °C	SOT-23-5	Surface Mount	10 µA	28 V	200 µA	Positive	1.81 mOhm	300 mA	1	Over Current Over Temperature	SC-74A SOT-753

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The ST732 is 300 mA LDO regulator, designed to be used in several medium voltage applications.

Ultra-low quiescent current of 5 µA makes it suitable for applications permanently connected to power supply/battery.

This feature is also useful when electronic modules remain permanently turned on.
