91523-1

Active

TE Application Tooling

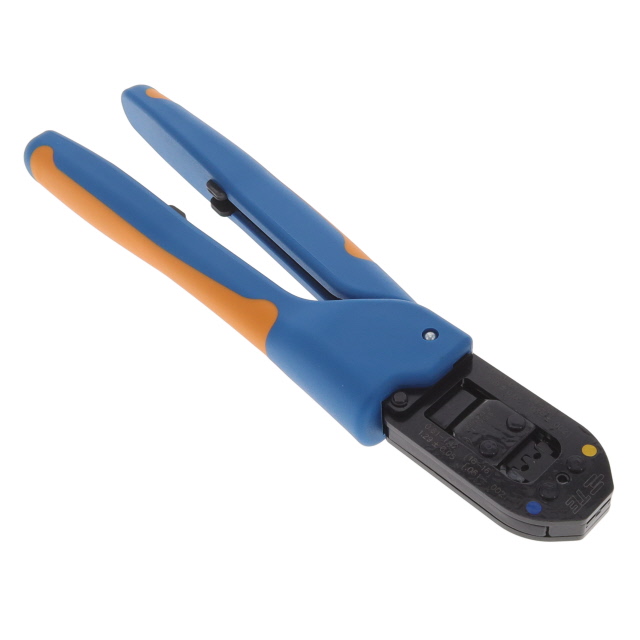

TOOL HAND CRIMPER 16-24AWG SIDE

Search across all available documentation for this part.

Active

TE Application Tooling

TOOL HAND CRIMPER 16-24AWG SIDE

Technical Specifications

Parameters and characteristics for this part

Specification	91523-1

For Use With/Related Products	Backplane and Circular Contacts
Ratcheting	Ratchet
Tool Type	Hand Crimper
Wire Entry Location	Side Entry
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	16 AWG

Part	Wire Entry Location	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	For Use With/Related Products	Tool Type	Ratcheting	For Use With/Related Products [Min]	For Use With/Related Products [Max]
TE Application Tooling 91523-1	Side Entry	24 AWG	16 AWG	Backplane and Circular Contacts	Hand Crimper	Ratchet
TE Application Tooling 91523-3				Backplane Circular Contacts	Crimp Head		16 AWG	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hand Crimper Tool Backplane and Circular Contacts
