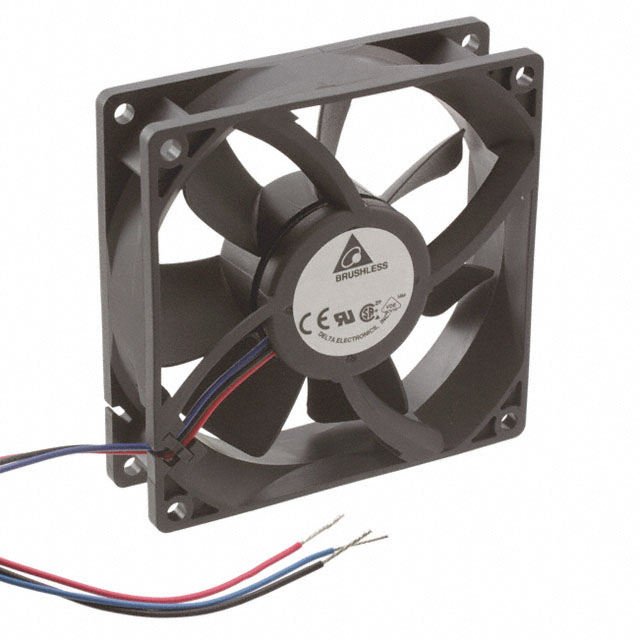

Specification	AFB0924SH-AF00

Air Flow	102.6 CFM
Approval Agency	CSA, UL, CE, VDE
Bearing Type	Ball
Current Rating	400 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, Speed Sensor (Tach)
Lifetime	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	53 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	9.6 W
RPM	4800 RPM
Size / Dimension Height	92 mm
Size / Dimension Length	92 mm
Size / Dimension Shape	Square
Static Pressure	0.526 in H2O
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Voltage Range (Max)	26.4 VDC
Voltage Range (Min)	14 VDC
Weight	0.267 lb
Width	1 in

AFB0924 Series

Part	Bearing Type	Air Flow	Weight	Termination Leads Count	Termination Type	Termination	Voltage - Rated	Features	Approval Agency	Width	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Noise	RPM	Fan Type	Power (Watts)	Static Pressure	Voltage Range (Max)	Voltage Range (Min)	Material - Blade	Lifetime	Material - Frame	Current Rating
Delta Electronics AFB0924VH-F00	Ball	67.8 CFM	0.218 lb	3	Wire Leads	3 Wire Leads	24 VAC	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	1 in	158 °F	14 °F	92 mm	Square	92 mm	45 dB	3800 RPM	Tubeaxial	5.28 W	0.302 in H2O	27.6 VDC	14 VDC	Plastic	70000 Hrs	Plastic	0.22 A
Delta Electronics AFB0924VH	Ball	67.8 CFM	0.218 lb	2 leads	Wire Leads	2 Wire Leads	24 VAC	Locked Rotor Protection	CE CSA UL VDE	1 in	158 °F	14 °F	92 mm	Square	92 mm	45 dB	3800 RPM	Tubeaxial	5.28 W	0.302 in H2O	27.6 VDC	14 VDC	Plastic	70000 Hrs	Plastic	0.22 A
Delta Electronics AFB0924H-R00	Ball	51.2 CFM	0.219 lb	3	Wire Leads	3 Wire Leads	24 VAC	Locked Rotor Sensor	CE CSA UL VDE	1 in	158 °F	14 °F	92 mm	Square	92 mm	34 dB	2850 RPM	Tubeaxial	2.4 W	0.177 in H2O	27.6 VDC	14 VDC	Plastic	70000 Hrs	Plastic	100 mA
Delta Electronics AFB0924H-F00	Ball	51.2 CFM	0.219 lb	3	Wire Leads	3 Wire Leads	24 VAC	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	1 in	158 °F	14 °F	92 mm	Square	92 mm	34 dB	2850 RPM	Tubeaxial	2.4 W	0.177 in H2O	27.6 VDC	14 VDC	Plastic	70000 Hrs	Plastic	100 mA
Delta Electronics AFB0924M	Ball	43.8 CFM	0.219 lb	2 leads	Wire Leads	2 Wire Leads	24 VAC	Locked Rotor Protection	CE CSA UL VDE	1 in	158 °F	14 °F	92 mm	Square	92 mm	30 dB	2450 RPM	Tubeaxial	1.92 W	0.13 in H2O	27.6 VDC	14 VDC	Plastic	70000 Hrs	Plastic	0.08 A
Delta Electronics AFB0924HH	Ball	57.9 CFM	0.218 lb	2 leads	Wire Leads	2 Wire Leads	24 VAC	Locked Rotor Protection	CE CSA UL VDE	1 in	158 °F	14 °F	92 mm	Square	92 mm	38 dB	3200 RPM	Tubeaxial	3.12 W	0.221 in H2O	27.6 VDC	14 VDC	Plastic	70000 Hrs	Plastic	0.13 A
Delta Electronics AFB0924SH-AF00	Ball	102.6 CFM	0.267 lb	3	Wire Leads	3 Wire Leads	24 VAC	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	1 in	158 °F	14 °F	92 mm	Square	92 mm	53 dB	4800 RPM	Tubeaxial	9.6 W	0.526 in H2O	26.4 VDC	14 VDC	Plastic	70000 Hrs	Plastic	400 mA
Delta Electronics AFB0924HD	Ball	54.6 CFM	0.203 lb	2 leads	Wire Leads	2 Wire Leads	24 VAC	Locked Rotor Protection	CE CSA UL VDE	20 mm	158 °F	14 °F	92 mm	Square	92 mm	35 dB	2700 RPM	Tubeaxial	2.4 W	0.138 in H2O	27.6 VDC	14 VDC	Plastic	70000 Hrs	Plastic	100 mA
Delta Electronics AFB0924L-R00	Ball	37.1 CFM	0.219 lb	3	Wire Leads	3 Wire Leads	24 VAC	Locked Rotor Sensor	CE CSA UL VDE	1 in	158 °F	14 °F	92 mm	Square	92 mm	25 dB	2100 RPM	Tubeaxial	1.44 W	0.1 in H2O	27.6 VDC	14 VDC	Plastic	70000 Hrs	Plastic	60 mA
Delta Electronics AFB0924H	Ball	51.2 CFM	0.219 lb	2 leads	Wire Leads	2 Wire Leads	24 VAC	Locked Rotor Protection	CE CSA UL VDE	1 in	158 °F	14 °F	92 mm	Square	92 mm	34 dB	2850 RPM	Tubeaxial	2.4 W	0.177 in H2O	27.6 VDC	14 VDC	Plastic	70000 Hrs	Plastic	100 mA
