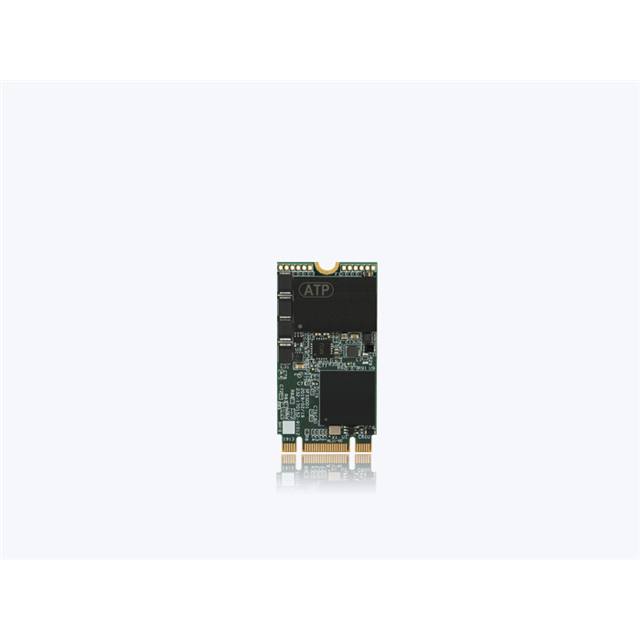

AF240GSTIA-7BAIP

Obsolete

ATP Electronics, Inc.

SSD 240GB M.2 MODULE 3D SATA III

Search across all available documentation for this part.

Obsolete

ATP Electronics, Inc.

SSD 240GB M.2 MODULE 3D SATA III

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Solid State Drive (SSD) FLASH - NAND (3D) 240GB SATA III M.2 Module

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	AF240GSTIA-7BAIP	AF240 Series

Form Factor	M.2 Module	M.2 Module, M.2 Module, PCIe
Form Factor	-	2.5 in
Memory Size	240 GB	240 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (3D)	Solid State Drive (SSD) FLASH - NAND (3D), Solid State Drive (SSD) FLASH - NAND (SLC)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size / Dimension [x]	42 mm	42 - 100 mm
Size / Dimension [y]	22 mm	22 - 69.9 mm
Size / Dimension [z]	3.5 mm	3.35 - 9.5 mm
Speed - Read	560 MB/s	3.4 - 560 MB/s
Speed - Write	450 MB/s	1.14 - 500 MB/s
Type	SATA III	SATA III, NVMe

SSD 240GB M.2 MODULE 3D SATA III

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Form Factor	Operating Temperature [Max]	Operating Temperature [Min]	Speed - Read	Speed - Write	Type	Memory Size	Memory Type	Form Factor
ATP Electronics, Inc. AF240GSTIC-7BAIP	3.35 mm	80 mm	22 mm	M.2 Module	85 °C	-40 °C	560 MB/s	450 MB/s	SATA III	240 GB	Solid State Drive (SSD) FLASH - NAND (3D)
ATP Electronics, Inc. AF240GSTCJ-7BAIP	7 mm	100 mm	69.9 mm		85 °C	-40 °C	560 MB/s	450 MB/s	SATA III	240 GB	Solid State Drive (SSD) FLASH - NAND (3D)	2.5 in
ATP Electronics, Inc. AF240GSTJA-8BAIP	3.5 mm	80 mm	22 mm	M.2 Module, PCIe	85 °C	-40 °C	3.4 GB/s	1.14 GB/s	NVMe	240 GB	Solid State Drive (SSD) FLASH - NAND (3D)
ATP Electronics, Inc. AF240GSTIA-7BAIP	3.5 mm	42 mm	22 mm	M.2 Module	85 °C	-40 °C	560 MB/s	450 MB/s	SATA III	240 GB	Solid State Drive (SSD) FLASH - NAND (3D)
ATP Electronics, Inc. AF240GSSCJ-OEM	9.5 mm	100 mm	69.85 mm		85 °C	-40 °C	500 MB/s	500 MB/s	SATA III	240 GB	Solid State Drive (SSD) FLASH - NAND (SLC)	2.5 in
