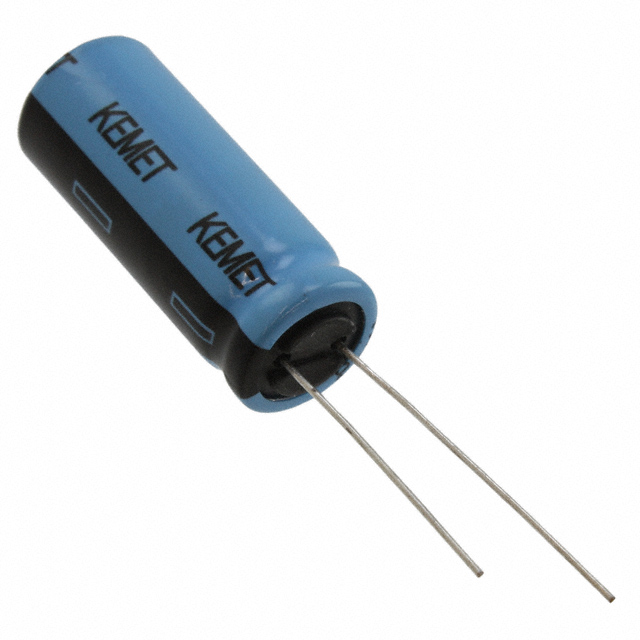

ESX108M035AK2AA

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 35V, 20% +TOL, 20% -TOL, 1000UF, THROUGH HOLE MOUNT, RADIAL LEADED

Search across all available documentation for this part.

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 35V, 20% +TOL, 20% -TOL, 1000UF, THROUGH HOLE MOUNT, RADIAL LEADED

Technical Specifications

Parameters and characteristics for this part

Specification	ESX108M035AK2AA

Applications	General Purpose
Capacitance	1000 µF
Impedance	61 mOhms
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	2 A
Ripple Current @ Low Frequency	1.6 A
Size / Dimension [diameter]	12 mm
Size / Dimension [diameter]	0.472 in
Tolerance	20 %
Voltage - Rated	35 V

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Tolerance	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Lead Spacing	Lead Spacing	Applications	Impedance	Ripple Current @ High Frequency	Voltage - Rated	Package / Case	Mounting Type	Lifetime @ Temp.
KEMET ESX108M035AK2AA	12 mm	0.472 in	1.6 A	20 %	1000 µF	-40 °C	105 ░C	Polar	5 mm	0.197 in	General Purpose	61 mOhms	2 A	35 V	Radial Can	Through Hole	5000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1000 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
