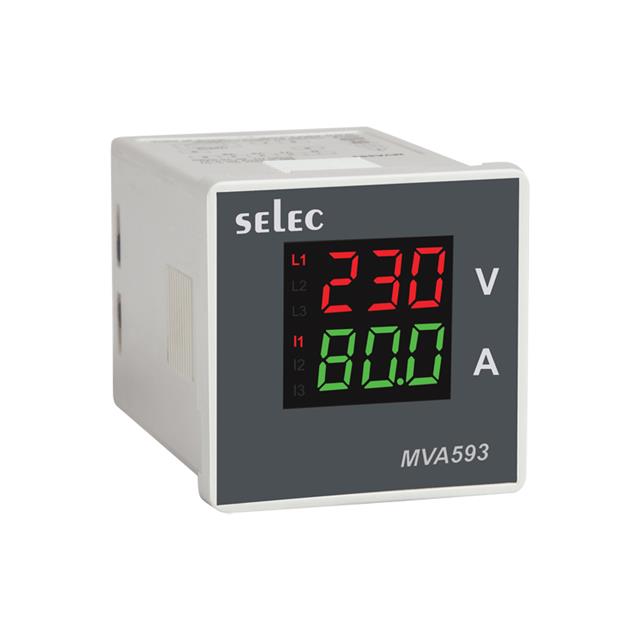

MVA593-CU

Active

Selec Controls USA Inc.

3 PHASE VA METER UPTO 800A

Search across all available documentation for this part.

Active

Selec Controls USA Inc.

3 PHASE VA METER UPTO 800A

Technical Specifications

Parameters and characteristics for this part

Specification	MVA593-CU

Display Type	LCD - Dual Color Characters, Backlight
Ingress Protection	IP51 - Dust Protected
Measuring Type	Voltage, Current
Number of Characters Per Row	3
Number of Characters Per Row	3
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Termination Style	Screw Terminal
Type	Ammeter, Volmeter
Voltage - Supply [Max]	276 VAC
Voltage - Supply [Min]	85 VAC

3 PHASE VA METER UPTO 800A

Part	Ingress Protection	Measuring Type	Number of Characters Per Row	Number of Characters Per Row	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Termination Style	Type	Operating Temperature [Max]	Operating Temperature [Min]
Selec Controls USA Inc. MVA593-CU	IP51 - Dust Protected	Current, Voltage	3	3	85 VAC	276 VAC	LCD - Dual Color Characters, Backlight	Screw Terminal	Ammeter, Volmeter	60 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 35.54

General part information

Ammeter, Voltmeter LCD - Dual Color Characters, Backlight Display Panel Mount
