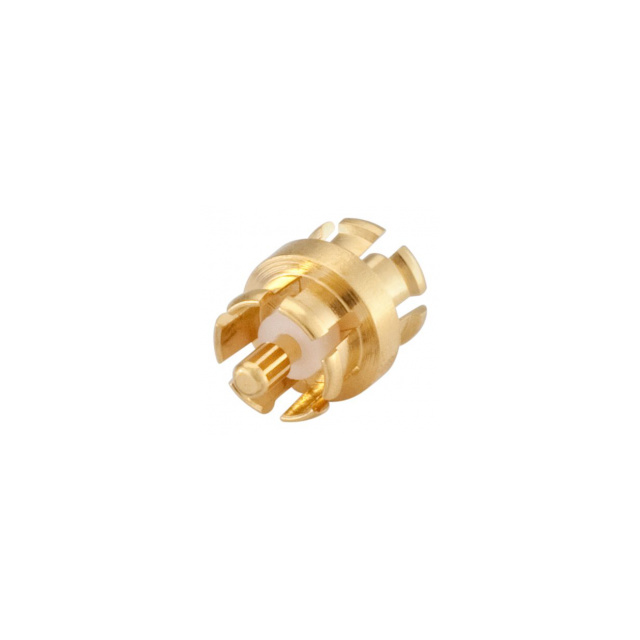

16S101-S00L5

Obsolete

Rosenberger

FMC ADAPTER

Search across all available documentation for this part.

Obsolete

Rosenberger

FMC ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	16S101-S00L5

Adapter Series	FMC to FMC
Adapter Type	Plug to Plug
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	FMC Plug, Male Pin
Convert To (Adapter End)	FMC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	10 GHz
Impedance	50 Ohms
Insertion Loss	0.32 dB
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Dielectric Material	Convert From (Adapter End)	Conversion Type	Style	Convert To (Adapter End)	Center Gender	Center Contact Material	Insertion Loss	Center Contact Plating	Body Finish	Impedance	Frequency - Max [Max]	Mounting Type	Fastening Type	Adapter Series	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Adapter Type
Rosenberger 16S101-S00L5	Polytetrafluoroethylene (PTFE)	FMC Plug Male Pin	Same Series	Straight	FMC Plug Male Pin	Male to Male	Brass	0.32 dB	Gold	Gold	50 Ohms	10 GHz	Free Hanging (In-Line)	Snap-On	FMC to FMC	-40 °C	105 ░C	Beryllium Copper	Plug to Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector FMC Plug, Male Pin To FMC Plug, Male Pin 50 Ohms
