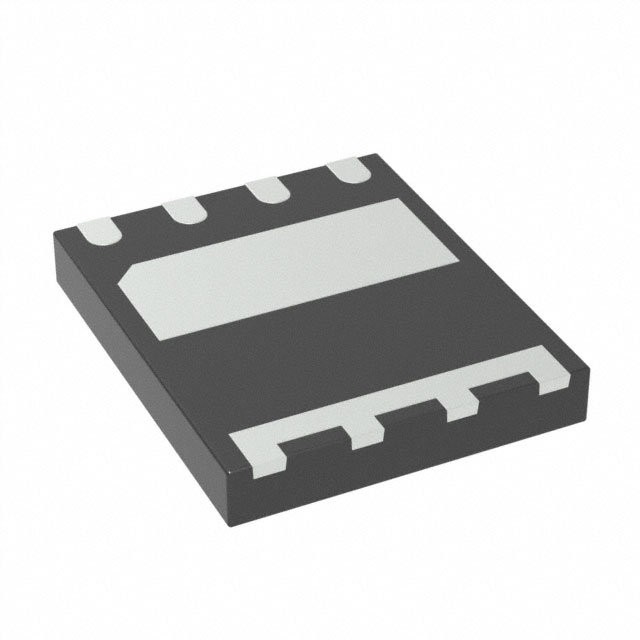

NV6117
ActiveNavitas Semiconductor
IC PWR GANFAST N-CH 1:1 8QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NV6117
ActiveNavitas Semiconductor
IC PWR GANFAST N-CH 1:1 8QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NV6117 |
|---|---|
| Current - Output (Max) [Max] | 12 A |
| Input Type | Non-Inverting |
| Interface | PWM |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side, Low Side |
| Output Type | N-Channel |
| Package / Case | 8-PowerVDFN |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 120 mOhm |
| Supplier Device Package | 8-QFN (5x6) |
| Switch Type | General Purpose |
| Voltage - Load | 650 V |
| Voltage - Supply (Vcc/Vdd) [Max] | 24 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.58 | |
| 10 | $ 5.91 | |||
| 25 | $ 5.58 | |||
| 100 | $ 4.84 | |||
| 250 | $ 4.59 | |||
| 500 | $ 4.12 | |||
| 1000 | $ 3.47 | |||
| 2500 | $ 3.30 | |||
| Digi-Reel® | 1 | $ 6.58 | ||
| 10 | $ 5.91 | |||
| 25 | $ 5.58 | |||
| 100 | $ 4.84 | |||
| 250 | $ 4.59 | |||
| 500 | $ 4.12 | |||
| 1000 | $ 3.47 | |||
| 2500 | $ 3.30 | |||
| Tape & Reel (TR) | 5000 | $ 3.07 | ||
NV6117 Series
IC PWR GANFAST N-CH 1:1 8QFN
| Part | Mounting Type | Switch Type | Rds On (Typ) | Input Type | Ratio - Input:Output [custom] | Package / Case | Output Type | Voltage - Load | Current - Output (Max) [Max] | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Interface | Supplier Device Package | Output Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Navitas Semiconductor NV6117 | Surface Mount | General Purpose | 120 mOhm | Non-Inverting | 1:1 | 8-PowerVDFN | N-Channel | 650 V | 12 A | 24 V | 10 V | 1 | -40 °C | 125 °C | PWM | 8-QFN (5x6) | High Side, Low Side |
Description
General part information
NV6117 Series
Power Switch/Driver 1:1 N-Channel 12A 8-QFN (5x6)
