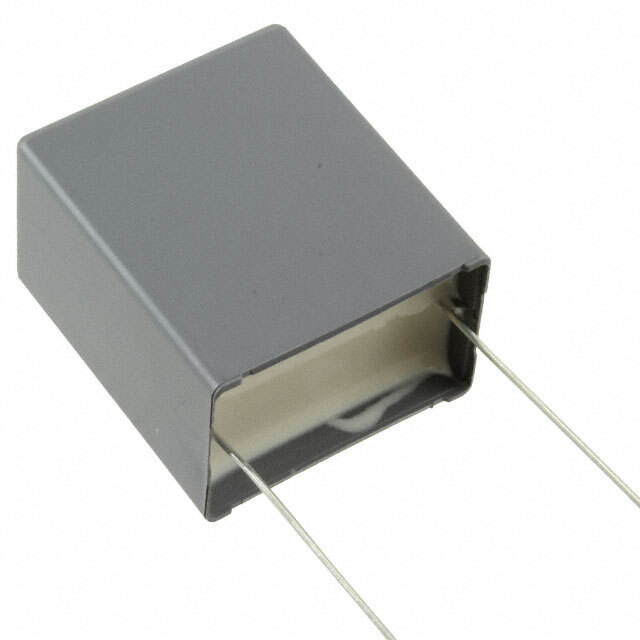

R60DR54705050K

Active

KEMET

GENERAL PURPOSE FILM CAPACITOR, METALLIZED PET, RADIAL BOX - 2 PIN, 47 ΜF, ± 10%, 40 V, 63 V

Search across all available documentation for this part.

Active

KEMET

GENERAL PURPOSE FILM CAPACITOR, METALLIZED PET, RADIAL BOX - 2 PIN, 47 ΜF, ± 10%, 40 V, 63 V

Technical Specifications

Parameters and characteristics for this part

Specification	R60DR54705050K

Applications	General Purpose
Capacitance	47 µF
Dielectric Material	Polyethylene Terephthalate (PET), Metallized, Polyester
Height - Seated (Max) [Max]	37.1 mm
Height - Seated (Max) [Max]	1.461 in
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	0.866 in
Size / Dimension [y]	22 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	40 V
Voltage Rating - DC	63 VDC

Part	Voltage Rating - DC	Dielectric Material	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Capacitance	Lead Spacing	Lead Spacing	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Applications	Voltage Rating - AC	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Ratings
KEMET R60DR52205040J	63 VDC	Metallized Polyester Polyethylene Terephthalate (PET)	Through Hole	11 mm	32 mm	0.433 in	1.26 in	22 µF	27.5 mm	1.083 in	PC Pins	105 ░C	-55 °C	5 %	General Purpose	40 V	Radial
KEMET R60DR54705050K	63 VDC	Metallized Polyester Polyethylene Terephthalate (PET)	Through Hole	22 mm	32 mm	0.866 in	1.26 in	47 µF	27.5 mm	1.083 in	PC Pins	105 ░C	-55 °C	10 %	General Purpose	40 V	Radial	37.1 mm	1.461 in
KEMET R60DR52204030J	63 VDC	Metallized Polyester Polyethylene Terephthalate (PET)	Through Hole		32 mm	0.512 in	1.26 in	22 µF	27.5 mm	1.083 in	PC Pins	105 ░C	-55 °C	5 %	General Purpose	40 V	Radial			0.87 in	22.1 mm	13 mm
KEMET R60DR5220AA30J	63 VDC	Polyester Metallized	Through Hole		32 mm	0.512 in	1.26 in	22 µF	27.5 mm	1.083 in	PC Pins	105 ░C	-55 °C	5 %	Automotive	40 V	Radial			0.87 in	22.1 mm	13 mm	AEC-Q200

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

47 µF Film Capacitor 40V 63V Polyester, Polyethylene Terephthalate (PET), Metallized Radial
