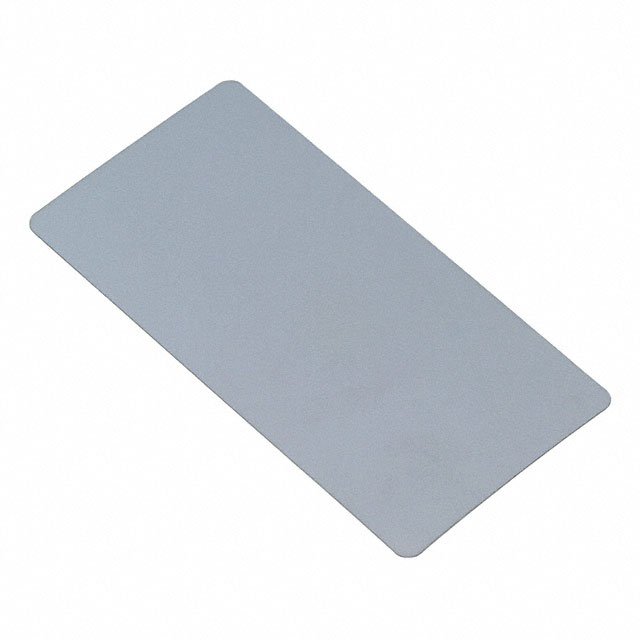

HMM-508254-5-8A

Active

TE Connectivity Raychem Cable Protection

THERMAL TRANSFER LABEL

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

THERMAL TRANSFER LABEL

Technical Specifications

Parameters and characteristics for this part

Specification	HMM-508254-5-8A

Applications	Device Marker
Color - Background	Silver
For Use With/Related Products	Thermal Transfer Printer
Label Size	50.8 mm, 1 "
Label Size	25.4 mm, 2 in
Label Type	Die Cut
Length	50.8 mm
Length	2 in
Material	Polyester
Material - Body	Polyester (PET)
Width	25.4 mm
Width [x]	1 in

Part	Printer Name	Label Type	Applications	Width	Width	Width	Color - Background	Length	Length	Material - Body	Width [x]	Width [x]	Length [x]	Length [x]	Material	Label Size	Label Size	For Use With/Related Products
TE Connectivity Raychem Cable Protection HMM-508064-10-8A	Ribbon Matrix	Die Cut	Industrial Applications	6.35 mm	0.25 in	0.25 in	Silver	50.8 mm	2 in	Polyester (PET)
TE Connectivity Raychem Cable Protection HMM-508508-3-8A	T312S	Die Cut	Rating Plates				Silver	50.8 mm	2 in	Metallized Polyester	2 in	50.8 mm
TE Connectivity Raychem Cable Protection HMM-762254-5-8A	T312S	Die Cut	Rating Plates	25.4 mm			Silver	76.2 mm	3 in	Metallized Polyester	1 in
TE Connectivity Raychem Cable Protection HMM-101101-1.3-8A	T312S	Die Cut	Rating Plates				Silver			Polyester (PET)
TE Connectivity Raychem Cable Protection HMM-508318-2.5-8A	Printer Ribbon Matrix	Die Cut		31.8 mm		1.252 in	Silver	50.8 mm	2 in	Polyester (PET)
TE Connectivity Raychem Cable Protection HMM-254254-10-8A	T312S	Die Cut	Rating Plates	25.4 mm			Silver			Metallized Polyester	1 in		1 in	25.4 mm
TE Connectivity Raychem Cable Protection HMM-508254-5-8A		Die Cut	Device Marker	25.4 mm			Silver	50.8 mm	2 in	Polyester (PET)	1 in				Polyester	1 " 50.8 mm	2 in 25.4 mm	Thermal Transfer Printer
TE Connectivity Raychem Cable Protection HMM-610419-2.5-8A	Printer Ribbon Matrix	Die Cut					Silver	50.8 mm	2 in	Polyester (PET)	1.65 in	41.91 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20000	$ 0.13

General part information

THERMAL TRANSFER LABEL

Technical documentation and resources
