A-2014-2S-4-N-R

Active

Assmann WSW Components

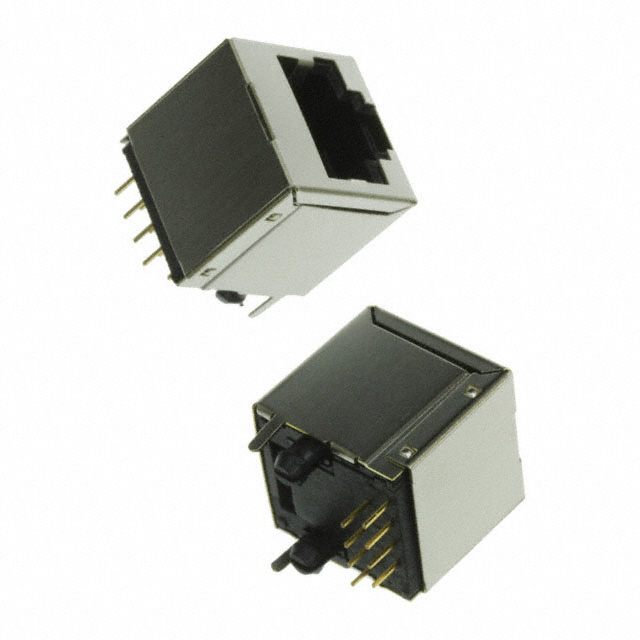

CONN MOD JACK 8P8C VERT SHIELDED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A-2014-2S-4-N-R

Active

Assmann WSW Components

CONN MOD JACK 8P8C VERT SHIELDED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.37
		10	$ 1.16
		25	$ 1.11
		40	$ 1.09
		100	$ 1.04
		300	$ 0.95
		500	$ 0.85
		1000	$ 0.76
		2400	$ 0.69

Description

General part information

A-2014 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Shielded

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A-2014-2S-4-N-R	A-2014 Series

Connector Type	Jack	Jack
Contact Finish	Gold	Gold
Contact Finish Thickness	0.152 Ám	0.152 - 1.27 µm
Contact Finish Thickness	6 Áin	6 - 50 µin
Contact Material	Phosphor Bronze	Phosphor Bronze
Features	-	Board Lock, Panel Stops, Solder Retention
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled	Polyester, Polybutylene Terephthalate (PBT), Glass Filled, Polyamide (PA), Nylon
LED Color	Does Not Contain LED	Does Not Contain LED
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Ports	1	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet), 6p6c (RJ11, RJ12, RJ14, RJ25), 4p4c, 6p4c
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Vertical	Vertical
Shielding	Shielded	Shielded, Unshielded
Tab Direction	User Selectable	User Selectable
Termination	Solder	Solder

A-2014 Series

CONN MOD JACK 8P8C VERT SHIELDED

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Finish	Orientation	Number of Rows	LED Color	Number of Ports	Shielding	Termination	Tab Direction	Mounting Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Contacts	Housing Material	Features
Assmann WSW Components A-2014-2S-1-N	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Shielded	Solder	User Selectable	Through Hole	Jack	15 µin	0.38 µm	8p8c (RJ45, Ethernet)	Polyester
Assmann WSW Components A-2014-2S-2-N	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Shielded	Solder	User Selectable	Through Hole	Jack	30 Áin	0.76 Ám	8p8c (RJ45, Ethernet)	Polyester
Assmann WSW Components A-2014-2-3-LP/FS	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Shielded	Solder	User Selectable	Through Hole	Jack	50 µin	1.27 µm	8p8c (RJ45, Ethernet)		Board Lock, Panel Stops
Assmann WSW Components A-2014-1-3	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Unshielded	Solder	User Selectable	Through Hole	Jack	50 µin	1.27 µm	6p6c (RJ11, RJ12, RJ14, RJ25)		Board Lock, Panel Stops
Assmann WSW Components A-2014-2S-4-N-R	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Shielded	Solder	User Selectable	Through Hole	Jack	6 Áin	0.152 Ám	8p8c (RJ45, Ethernet)	Polybutylene Terephthalate (PBT), Glass Filled
Assmann WSW Components A-2014-1-4-R	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Unshielded	Solder	User Selectable	Through Hole	Jack	6 Áin	0.152 Ám	6p6c (RJ11, RJ12, RJ14, RJ25)	Polybutylene Terephthalate (PBT), Glass Filled	Board Lock, Panel Stops
Assmann WSW Components A-2014-3-4-N-T-R	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Unshielded	Solder	User Selectable	Through Hole	Jack	6 Áin	0.152 Ám	4p4c
Assmann WSW Components A-2014-1-2-N-T	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Unshielded	Solder	User Selectable	Through Hole	Jack	30 Áin	0.76 Ám	6p6c (RJ11, RJ12, RJ14, RJ25)
Assmann WSW Components A-2014-2-1-LP/FS	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Shielded	Solder	User Selectable	Through Hole	Jack	15 µin	0.38 µm	8p8c (RJ45, Ethernet)		Board Lock, Panel Stops
Assmann WSW Components A-2014-3-3	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Unshielded	Solder	User Selectable	Through Hole	Jack	50 µin	1.27 µm	4p4c	Polyester	Board Lock, Panel Stops
