R85049/90-15Z03
ActiveTE Connectivity Aerospace, Defense and Marine

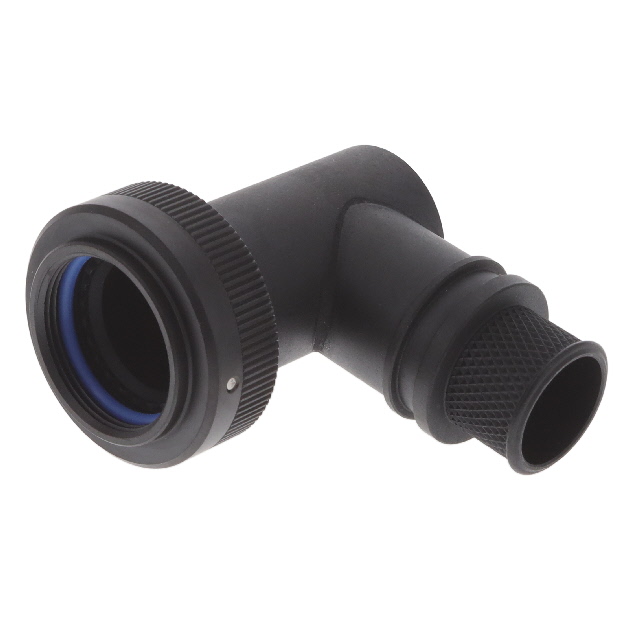

CONN BACKSHELL BANDING SZD BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R85049/90-15Z03
ActiveTE Connectivity Aerospace, Defense and Marine
CONN BACKSHELL BANDING SZD BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | R85049/90-15Z03 | R85049 Series |
|---|---|---|
| - | - | |
| Accessory Type | - | Termination Band, Banding, Split-Ring |
| Cable Exit | 90 ° | 90 - 180 ° |
| Cable Opening | - | 7.9 - 17.48 mm |
| Cable Opening | - | 0.311 - 0.688 in |
| Cable Opening [custom] | 14.27 mm | 6.35 - 47.98 mm |
| Cable Opening [custom] | 0.562 in | 0.25 - 1.889 in |
| Color | Black | Black, Silver, Olive Drab |
| Diameter - Outside | - | 35.71 mm |
| Diameter - Outside [diameter] | 1.279 in | 0.75 - 1.889 in |
| Diameter - Outside [diameter] | 32.49 mm | 1.406 - 47.98 mm |
| Features | Self Locking | Self Locking, Flat |
| For Use With/Related Products | MIL-DTL-38999 Series III, IV | MIL-DTL-38999 Series III, IV, M85049/88 Circular Shrink Boot Adapter, Banding Backshells and Braid Socks |
| Grade | - | Military |
| Includes | - | 1 O-Ring, 1 Backshell |
| Material | Aluminum | Aluminum, Aluminum Alloy |
| Plating | Zinc Nickel | Zinc Nickel, Electroless Nickel, Cadmium |
| Qualification | - | SAE AS 85049 |
| Shell Size - Insert | D | D, G, C, J, 17, E, H, F |
| Shell Size - Insert | - | 4 - 25 |
| Shell Size - Insert | - | 9 |
| Shell Size - Insert | - | A |
| Shielding | Shielded | Shielded |
| Thread Size | - | M37x1 |
| Type | Banding, Backshell | Banding, Backshell |
R85049 Series
CONN BACKSHELL BANDING SZD BLACK
| Part | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Features | Color | Shielding | Shell Size - Insert | Material | Type | Cable Exit | Plating | Cable Opening [custom] | Cable Opening [custom] | For Use With/Related Products | Shell Size - Insert | Includes | Qualification | Grade | Accessory Type | Diameter - Outside [diameter] | Shell Size - Insert [custom] | Shell Size - Insert [custom] | Cable Opening [diameter] | Cable Opening [diameter] | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine R85049/90-15Z03 | 1.279 in | 32.49 mm | Self Locking | Black | Shielded | D | Aluminum | Backshell, Banding | 90 ° | Zinc Nickel | 14.27 mm | 0.562 in | MIL-DTL-38999 Series III, IV | |||||||||||
TE Connectivity Aerospace, Defense and Marine R85049/88-21Z02 | 1.642 in | 41.71 mm | Self Locking | Black | Shielded | G | Aluminum | Backshell, Banding | 180 ° | Zinc Nickel | 15.88 mm | 0.625 in | MIL-DTL-38999 Series III, IV | 21 | 1 Backshell, 1 O-Ring | |||||||||
TE Connectivity Aerospace, Defense and Marine R85049/85-16Z02 | ||||||||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine R85049/90-21Z03 | 1.642 in | 41.71 mm | Self Locking | Black | Shielded | G | Aluminum | Backshell, Banding | 90 ° | Zinc Nickel | 20.62 mm | 0.812 in | MIL-DTL-38999 Series III, IV | |||||||||||
TE Connectivity Aerospace, Defense and Marine R85049/88-13Z02 | 1.157 " | 29.39 mm | Self Locking | Black | Shielded | C | Aluminum | Backshell, Banding | 180 ° | Zinc Nickel | 7.92 mm | 0.312 in | MIL-DTL-38999 Series III, IV | |||||||||||
TE Connectivity Aerospace, Defense and Marine R85049/128-1 | Flat | Silver | M85049/88 Circular Shrink Boot Adapter | SAE AS 85049 | Military | Termination Band | ||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine R85049/88-15Z03 | 1.279 in | 32.49 mm | Self Locking | Black | Shielded | D | Aluminum | Backshell, Banding | 180 ° | Zinc Nickel | 14.27 mm | 0.562 in | MIL-DTL-38999 Series III, IV | 15 | 1 Backshell, 1 O-Ring | |||||||||
TE Connectivity Aerospace, Defense and Marine R85049/88-25N03 | 1.889 in | 47.98 mm | Self Locking | Silver | Shielded | J | Aluminum | Backshell, Banding | 180 ° | Electroless Nickel | 25.4 mm | 1 in | MIL-DTL-38999 Series III, IV | 25 | 1 Backshell, 1 O-Ring | |||||||||
TE Connectivity Aerospace, Defense and Marine R85049/85-22Z02 | ||||||||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine R85049/128-5 | Flat | Silver | M85049/88 Circular Shrink Boot Adapter | Termination Band |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 349.53 | |
Description
General part information
R85049 Series
Black Connector Backshell, Banding D
