R85049/88-15Z03

Active

TE Connectivity Aerospace, Defense and Marine

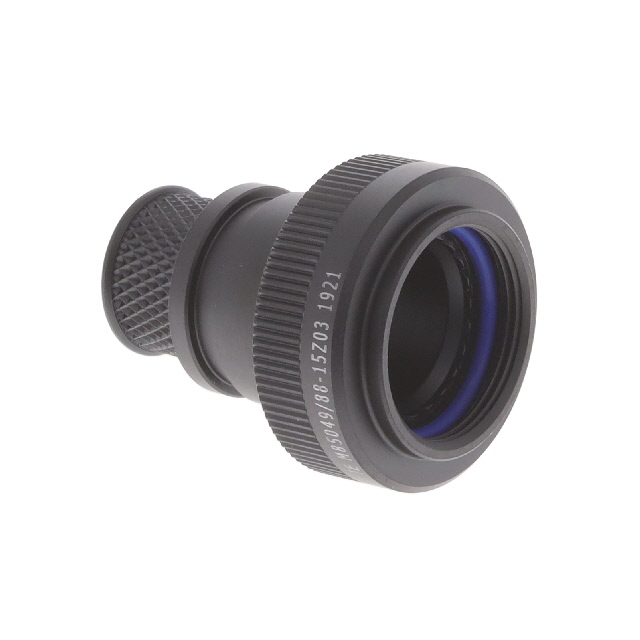

CONN BACKSH BANDING SZ15 D BLK

Deep-Dive with AI

Search across all available documentation for this part.

R85049/88-15Z03

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSH BANDING SZ15 D BLK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 216.87

Description

General part information

R85049 Series

Black Connector Backshell, Banding 15, D

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	R85049/88-15Z03	R85049 Series

	-	-
Accessory Type	-	Termination Band, Banding, Split-Ring
Cable Exit	180 °	90 - 180 °
Cable Opening	-	7.9 - 17.48 mm
Cable Opening	-	0.311 - 0.688 in
Cable Opening [custom]	14.27 mm	6.35 - 47.98 mm
Cable Opening [custom]	0.562 in	0.25 - 1.889 in
Color	Black	Black, Silver, Olive Drab
Diameter - Outside	-	35.71 mm
Diameter - Outside [diameter]	1.279 in	0.75 - 1.889 in
Diameter - Outside [diameter]	32.49 mm	1.406 - 47.98 mm
Features	Self Locking	Self Locking, Flat
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV, M85049/88 Circular Shrink Boot Adapter, Banding Backshells and Braid Socks
Grade	-	Military
Includes	1 O-Ring, 1 Backshell	1 O-Ring, 1 Backshell
Material	Aluminum	Aluminum, Aluminum Alloy
Plating	Zinc Nickel	Zinc Nickel, Electroless Nickel, Cadmium
Qualification	-	SAE AS 85049
Shell Size - Insert	15	4 - 25
Shell Size - Insert	D	D, G, C, J, 17, E, H, F
Shell Size - Insert	-	9
Shell Size - Insert	-	A
Shielding	Shielded	Shielded
Thread Size	-	M37x1
Type	Banding, Backshell	Banding, Backshell

R85049 Series

CONN BACKSHELL BANDING SZD BLACK

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Features	Color	Shielding	Shell Size - Insert	Material	Type	Cable Exit	Plating	Cable Opening [custom]	Cable Opening [custom]	For Use With/Related Products	Shell Size - Insert	Includes	Qualification	Grade	Accessory Type
TE Connectivity Aerospace, Defense and Marine R85049/90-15Z03	1.279 in	32.49 mm	Self Locking	Black	Shielded	D	Aluminum	Backshell, Banding	90 °	Zinc Nickel	14.27 mm	0.562 in	MIL-DTL-38999 Series III, IV
TE Connectivity Aerospace, Defense and Marine R85049/88-21Z02	1.642 in	41.71 mm	Self Locking	Black	Shielded	G	Aluminum	Backshell, Banding	180 °	Zinc Nickel	15.88 mm	0.625 in	MIL-DTL-38999 Series III, IV	21	1 Backshell, 1 O-Ring
TE Connectivity Aerospace, Defense and Marine R85049/85-16Z02
TE Connectivity Aerospace, Defense and Marine R85049/90-21Z03	1.642 in	41.71 mm	Self Locking	Black	Shielded	G	Aluminum	Backshell, Banding	90 °	Zinc Nickel	20.62 mm	0.812 in	MIL-DTL-38999 Series III, IV
TE Connectivity Aerospace, Defense and Marine R85049/88-13Z02	1.157 "	29.39 mm	Self Locking	Black	Shielded	C	Aluminum	Backshell, Banding	180 °	Zinc Nickel	7.92 mm	0.312 in	MIL-DTL-38999 Series III, IV
TE Connectivity Aerospace, Defense and Marine R85049/128-1			Flat	Silver									M85049/88 Circular Shrink Boot Adapter			SAE AS 85049	Military	Termination Band
TE Connectivity Aerospace, Defense and Marine R85049/88-15Z03	1.279 in	32.49 mm	Self Locking	Black	Shielded	D	Aluminum	Backshell, Banding	180 °	Zinc Nickel	14.27 mm	0.562 in	MIL-DTL-38999 Series III, IV	15	1 Backshell, 1 O-Ring
TE Connectivity Aerospace, Defense and Marine R85049/88-25N03	1.889 in	47.98 mm	Self Locking	Silver	Shielded	J	Aluminum	Backshell, Banding	180 °	Electroless Nickel	25.4 mm	1 in	MIL-DTL-38999 Series III, IV	25	1 Backshell, 1 O-Ring
TE Connectivity Aerospace, Defense and Marine R85049/85-22Z02
TE Connectivity Aerospace, Defense and Marine R85049/128-5			Flat	Silver									M85049/88 Circular Shrink Boot Adapter					Termination Band
