8732 0601000

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8732 0601000

Cable Type	Multi-Pair
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2094
Shield Coverage	62 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Number of Conductors	Voltage	Cable Type	Jacket (Insulation) Material	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Conductor Insulation	Conductor Material	Shield Type	Shield Coverage	Usage	Ratings	Jacket Color	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 8732 0601000	4	300 V	Multi-Pair	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	-20 C	60 °C	Copper Tinned	Polyethylene (PE)	Copper Tinned	Braid	62 %	Audio Control Instrumentation	UL Style 2094	Chrome	22 AWG	7	30 AWG	0.762 mm	0.03 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.93

General part information

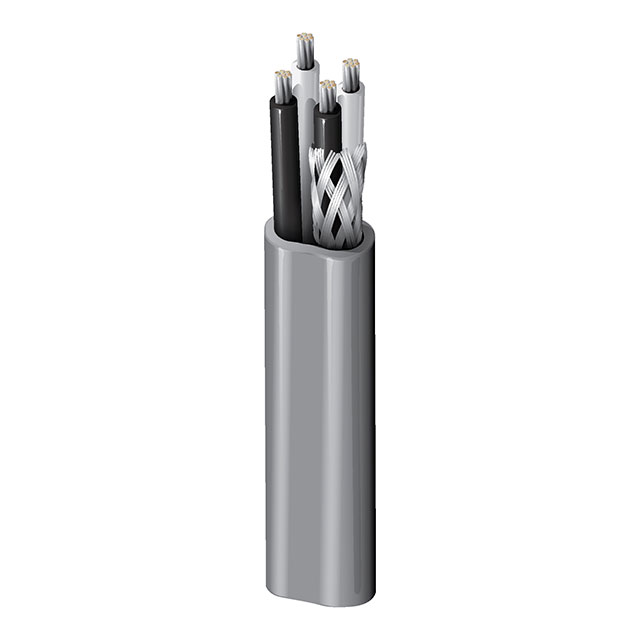

4 (2 Pair) Conductor Multi-Pair Cable Chrome 22 AWG Braid 1000.0' (304.8m)
