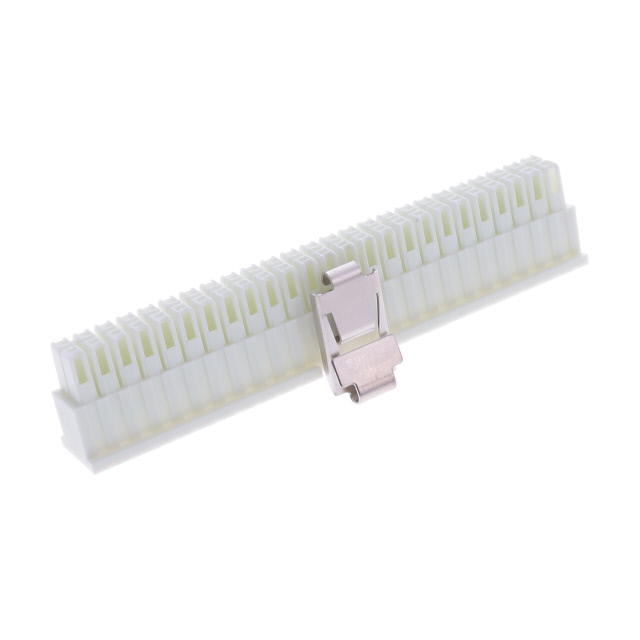

IPD1-25-D-K-M

Active

Samtec Inc.

CONN HOUSING F 50 POS 2.54MM CRIMP ST CABLE MOUNT TUBE

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HOUSING F 50 POS 2.54MM CRIMP ST CABLE MOUNT TUBE

Technical Specifications

Parameters and characteristics for this part

Part	Contact Termination	Color	Connector Type	Number of Rows	Mounting Type	Insulation Material	Note	Fastening Type	Row Spacing [x]	Row Spacing	Contact Type	Features	Pitch [x]	Pitch [x]	Number of Positions
Samtec Inc. IPD1-25-D-GP	Crimp	White	Receptacle	2	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Latch Lock	0.1 in	2.54 mm	Female Socket	Guide Post	2.54 mm	0.1 in	50
Samtec Inc. IPD1-25-S-K-M	Crimp	White	Receptacle	1	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Latch Lock			Female Socket	Polarizing Key	2.54 mm	0.1 in
Samtec Inc. IPD1-25-D-K-M	Crimp	White	Receptacle	2	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Latch Lock	0.1 in	2.54 mm	Female Socket	Polarizing Key	2.54 mm	0.1 in	50
Samtec Inc. IPD1-25-D-M	Crimp	White	Receptacle	2	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Latch Lock	0.1 in	2.54 mm	Female Socket		2.54 mm	0.1 in	50
Samtec Inc. IPD1-25-D-GP-M	Crimp	White	Receptacle	2	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Latch Lock	0.1 in	2.54 mm	Female Socket	Guide Post	2.54 mm	0.1 in	50
Samtec Inc. IPD1-25-D-K-R	Crimp	White	Receptacle	2	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Latch Lock	0.1 in	2.54 mm	Female Socket	Polarizing Key	2.54 mm	0.1 in	50
Samtec Inc. IPD1-25-D	Crimp	White	Receptacle	2	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Latch Lock	0.1 in	2.54 mm	Female Socket		2.54 mm	0.1 in	50

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Rectangular Connectors - Housings Receptacle White 0.100" (2.54mm)

Technical documentation and resources
