8282-5SG-318

Active

Conxall/Switchcraft

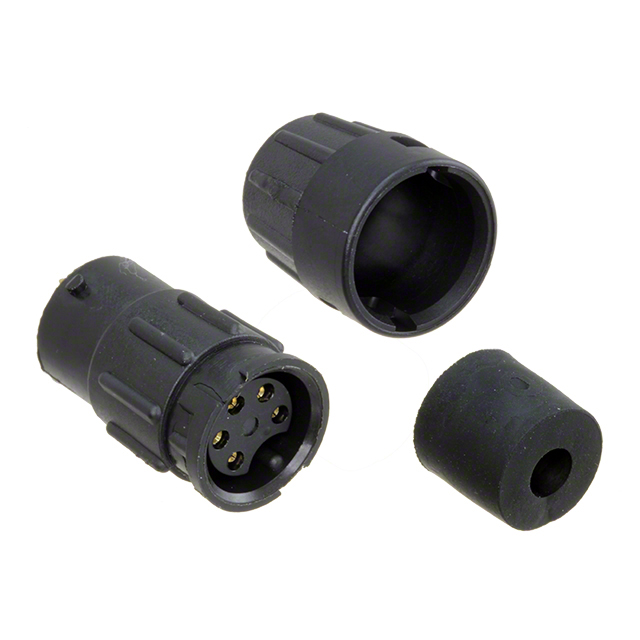

CONN RCPT FMALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8282-5SG-318	8282-5SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	5.33 mm
Cable Opening	-	5.84 mm
Cable Opening	-	0.21 in
Cable Opening	-	0.23 in
Cable Opening [Max] [custom]	0.2 in	0.2 in
Cable Opening [Max] [custom]	5.08 mm	5.08 mm
Cable Opening [Min] [custom]	4.57 mm	4.57 mm
Cable Opening [Min] [custom]	0.18 in	0.18 in
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

CONN RCPT FMALE 5P GOLD SLDR CUP

Part	Voltage Rating	Shielding	Color	Primary Material	Ingress Protection	Fastening Type	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Orientation	Contact Finish - Mating	Applications	Connector Type	Contact Material	Features	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 8282-5SG-318	600 V	Unshielded	Black	Plastic	Weathertight	Bayonet Lock	Varies by Wire Gauge	Free Hanging (In-Line)	-40 °C	115 °C	Nylon, Polyamide (PA)	Keyed	Gold	Automotive, Communication Systems, Instrumentation	Receptacle, Female Sockets	Brass	Backshell	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 8282-5SG-321	600 V	Unshielded	Black	Plastic	Weathertight	Bayonet Lock	Varies by Wire Gauge	Free Hanging (In-Line)	-40 °C	115 °C	Nylon, Polyamide (PA)	Keyed	Gold	Automotive, Communication Systems, Instrumentation	Receptacle, Female Sockets	Brass	Backshell					5.33 mm	5.84 mm	0.21 in	0.23 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder Cup
