25163 BK199

Active

ALPHA WIRE

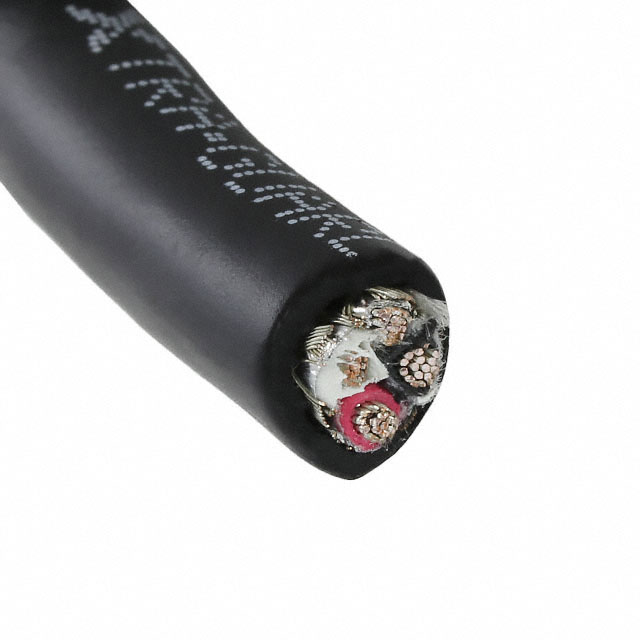

CABLE 3COND 18AWG BLK SHLD 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 18AWG BLK SHLD 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	25163 BK199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Shield Coverage	70 %, 100 %
Shield Material	Copper, Tinned, Suprashield®
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	18 AWG

CABLE 3COND 18AWG BLK SHLD 1000'

Part	Length	Length	Conductor Material	Conductor Insulation	Number of Conductors	Jacket Color	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Voltage	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Features	Jacket (Insulation) Material	Shield Material	Cable Type
ALPHA WIRE 25163 BK199	1000 ft	304.8 m	Copper, Tinned	Poly-Vinyl Chloride (PVC)	3	Black	18 AWG	16	30 AWG	Braid, Foil	300 V	70 %, 100 %	-30 ░C	90 °C	ISO 10993, UL Style 20668	Biological Compatibility, Drain Wire, Rip Cord	Polyurethane (PU)	Copper, Tinned, Suprashield®	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 8.52
Newark	1 Foot	1	$ 10.70

General part information

3 Conductor Multi-Conductor Cable Black 18 AWG Foil, Braid 1000.0' (304.8m)
