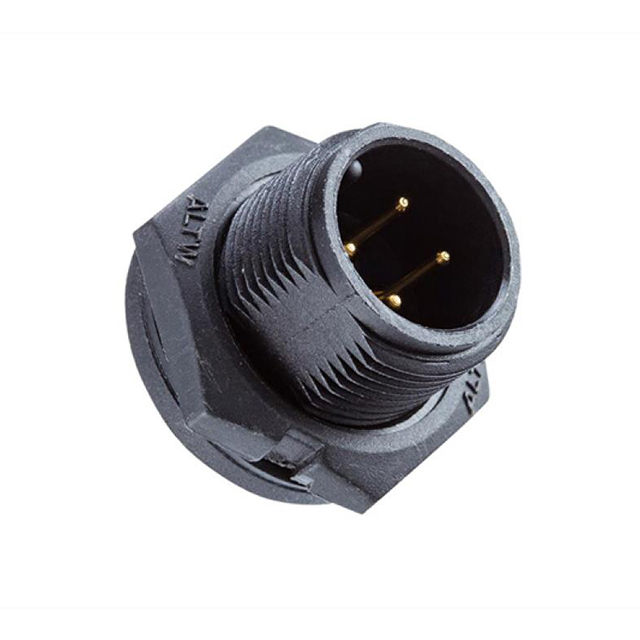

BD-04PMMP-SC7001

Active

Amphenol LTW

CIRCULAR CONNECTOR, STANDARD (B) SERIES, PANEL MOUNT PLUG, 4 CONTACTS

Search across all available documentation for this part.

Active

Amphenol LTW

CIRCULAR CONNECTOR, STANDARD (B) SERIES, PANEL MOUNT PLUG, 4 CONTACTS

Technical Specifications

Parameters and characteristics for this part

Specification	BD-04PMMP-SC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

Part	Insert Material	Mounting Feature	Contact Finish - Mating	Termination	Number of Positions	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Voltage Rating	Shielding	Contact Material	Orientation	Shell Size - Insert	Ingress Protection	Primary Material	Shell Material	Color
Amphenol LTW BD-04PMMP-SC7001	Polyamide (PA) Nylon Glass Filled	Bulkhead - Front Side Nut	Gold	Solder	4	5 A	-40 °C	105 ░C	Male Pins Receptacle	250 VDC	Unshielded	Copper Alloy	Keyed	B	IP67 - Dust Tight Waterproof	Plastic	Glass Filled Nylon Polyamide (PA)	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder
