621-009-360-556

Active

EDAC Inc.

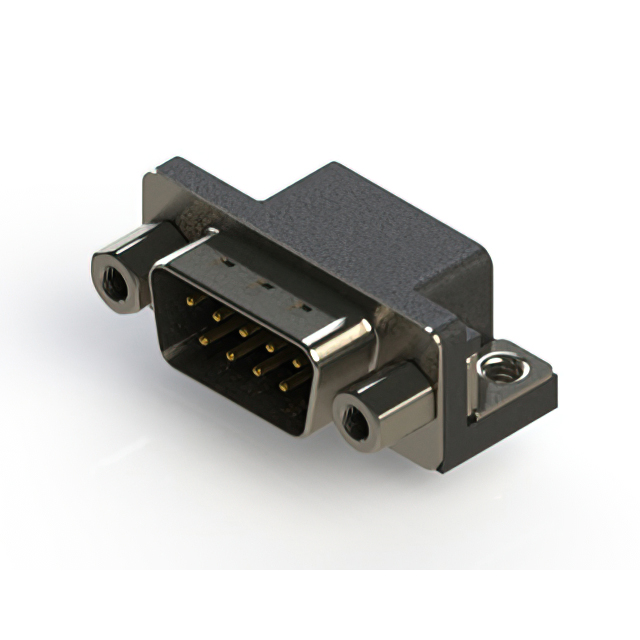

D SUBMINIATURE CONNECTOR, 9 CONTACT(S), MALE, 0.109 INCH PITCH, SOLDER TERMINAL, M3, PLUG,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

621-009-360-556

Active

EDAC Inc.

D SUBMINIATURE CONNECTOR, 9 CONTACT(S), MALE, 0.109 INCH PITCH, SOLDER TERMINAL, M3, PLUG,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	621-009-360-556

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets, Shielded
Flange Feature	Female Screwlock (M3), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

621-009 Series

...

Part	Mounting Type	Dielectric Material	Color	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Current Rating (Amps)	Backset Spacing	Backset Spacing	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness	Termination	Material Flammability Rating	Flange Feature	Connector Type	Features	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Connector Style	Contact Material	Contact Finish	Contact Finish Thickness
EDAC Inc. 621-009-668-053	Board Edge Right Angle Through Hole	Polyester Thermoplastic	Black	Signal	DE E	1	3 A	8.08 mm	0.318 "	Nickel Plated Steel	0.76 Ám	30 Áin	Solder	UL94 V-0	Female Screwlock (4-40) Mating Side	Male Pins Plug	Filter Grounding Indents Mounting Brackets Shielded	2	85 °C	-55 °C	9	D-Sub	Copper Alloy	Gold
EDAC Inc. 621-009-360-050	Board Edge Right Angle Through Hole	Polyester Thermoplastic	Black	Signal	DE E	1	3 A	8.08 mm	0.318 "	Nickel Plated Steel	0.38 µm	15 µin	Solder	UL94 V-0	4-40	Male Pins Plug	Grounding Indents Mounting Brackets Shielded	2	85 °C	-55 °C	9	D-Sub	Copper Alloy	Gold
EDAC Inc. 621-009-268-051	Board Edge Right Angle Through Hole	Polyester Thermoplastic	Black	Signal	DE E	1	3 A	8.08 mm	0.318 "	Nickel Plated Steel			Solder	UL94 V-0	Housing/Shell (Unthreaded)	Male Pins Plug	Filter Grounding Indents Mounting Brackets Shielded	2	85 °C	-55 °C	9	D-Sub	Copper Alloy	Gold	Flash
EDAC Inc. 621-009-360-556	Board Edge Right Angle Through Hole	Polyester Thermoplastic	Black	Signal	DE E	1	3 A	8.08 mm	0.318 "	Nickel Plated Steel	0.38 µm	15 µin	Solder	UL94 V-0	Female Screwlock (M3) Mating Side	Male Pins Plug	Grounding Indents Mounting Brackets Shielded	2	125 °C	-55 °C	9	D-Sub	Copper Alloy	Gold
EDAC Inc. 621-009-368-516	Board Edge Right Angle Through Hole	Polyester Thermoplastic	Black	Signal	DE E	1	3 A	8.08 mm	0.318 "	Nickel Plated Steel	0.38 µm	15 µin	Solder	UL94 V-0	Female Screwlock (M3) Mating Side	Male Pins Plug	Filter Grounding Indents Mounting Brackets Shielded	2	125 °C	-55 °C	9	D-Sub	Copper Alloy	Gold
EDAC Inc. 621-009-268-055	Board Edge Right Angle Through Hole	Polyester Thermoplastic	Black	Signal	DE E	1	3 A	8.08 mm	0.318 "	Nickel Plated Steel			Solder	UL94 V-0	Housing/Shell (M3)	Male Pins Plug	Filter Grounding Indents Mounting Brackets Shielded	2	85 °C	-55 °C	9	D-Sub	Copper Alloy	Gold	Flash
EDAC Inc. 621-009-260-535	Board Edge Right Angle Through Hole	Polyester Thermoplastic	Black	Signal	DE E	1	3 A	8.08 mm	0.318 "	Nickel Plated Steel			Solder	UL94 V-0	Housing/Shell (M3)	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	2	125 °C	-55 °C	9	D-Sub	Copper Alloy	Gold	Flash
EDAC Inc. 621-009-668-542	Board Edge Right Angle Through Hole	Polyester Thermoplastic	Black	Signal	DE E	1	3 A	8.08 mm	0.318 "	Nickel Plated Steel	0.76 Ám	30 Áin	Solder	UL94 V-0	Housing/Shell (4-40)	Male Pins Plug	Board Lock Filter Grounding Indents Mounting Brackets Shielded	2	125 °C	-55 °C	9	D-Sub	Copper Alloy	Gold
EDAC Inc. 621-009-360-010	Board Edge Right Angle Through Hole	Polyester Thermoplastic	Black	Signal	DE E	1	3 A	8.08 mm	0.318 "	Nickel Plated Steel	0.38 µm	15 µin	Solder	UL94 V-0	4-40	Male Pins Plug	Grounding Indents Mounting Brackets Shielded	2	85 °C	-55 °C	9	D-Sub	Copper Alloy	Gold
EDAC Inc. 621-009-668-550	Board Edge Right Angle Through Hole	Polyester Thermoplastic	Black	Signal	DE E	1	3 A	8.08 mm	0.318 "	Nickel Plated Steel	0.76 Ám	30 Áin	Solder	UL94 V-0	4-40	Male Pins Plug	Filter Grounding Indents Mounting Brackets Shielded	2	125 °C	-55 °C	9	D-Sub	Copper Alloy	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 3.31
Newark	Each	25	$ 3.53
		100	$ 3.38
		250	$ 3.15
		500	$ 3.00
		1000	$ 2.85
		2500	$ 2.63

Description

General part information

621-009 Series

9 Position D-Sub Plug, Male Pins Connector
