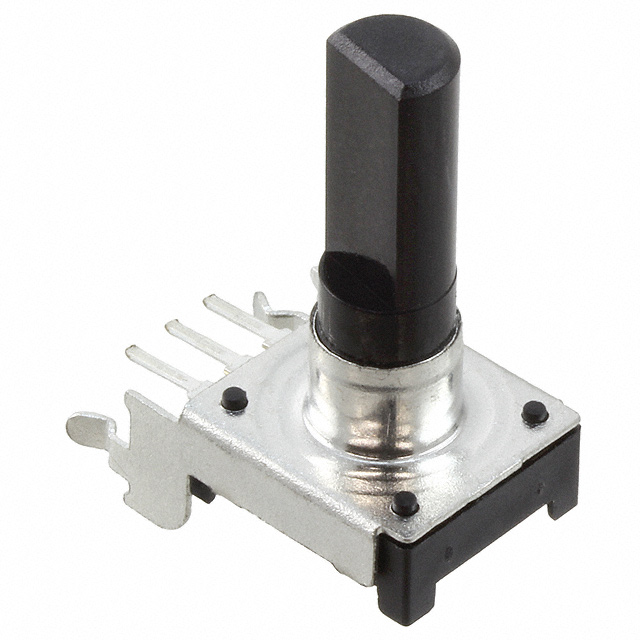

PEC12R-2225F-N0024

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 24PPR

Search across all available documentation for this part.

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 24PPR

Technical Specifications

Parameters and characteristics for this part

Specification	PEC12R-2225F-N0024

Actuator Type	Flatted End
Actuator Type [diameter]	6 mm
Built in Switch	False
Detent	True
Encoder Type	Mechanical
Orientation	Right Angle
Output Type	Quadrature (Incremental)
Pulses per Revolution	24 per Revolution
Rotational Life (Cycles Min) [Min]	30K
Termination Style	PC Pin

Part	Termination Style	Rotational Life (Cycles Min) [Min]	Actuator Type [diameter]	Actuator Type	Output Type	Pulses per Revolution	Encoder Type	Orientation	Mounting Type
Bourns Inc. PEC12R-4120F-S0012	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	12 pulses per revolution	Mechanical	Vertical
Bourns Inc. PEC12R-2217F-S0024	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	24 per Revolution	Mechanical	Right Angle
Bourns Inc. PEC12R-4215F-S0024	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	24 per Revolution	Incremental	Horizontal
Bourns Inc. PEC12R-4230F-N0024	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	24 per Revolution	Mechanical	Vertical
Bourns Inc. PEC12R-3225F-S0024	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	24 per Revolution	Mechanical	Vertical	Panel PCB Through Hole
Bourns Inc. PEC12R-4020F-S0012	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	12 pulses per revolution	Mechanical	Vertical
Bourns Inc. PEC12R-4017F-N0024	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	24 per Revolution	Mechanical	Vertical
Bourns Inc. PEC12R-4125F-N0012	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	12 pulses per revolution	Mechanical	Vertical
Bourns Inc. PEC12R-4020F-N0012	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	12 pulses per revolution	Mechanical	Vertical
Bourns Inc. PEC12R-2225F-N0024	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	24 per Revolution	Mechanical	Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Mechanical 24 Quadrature (Incremental) Right Angle
