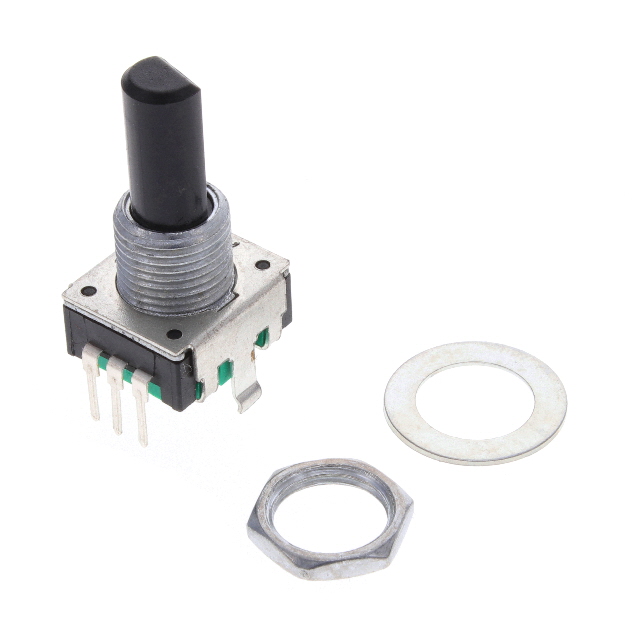

PEC12R-3225F-S0024

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 24PPR

Search across all available documentation for this part.

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 24PPR

Technical Specifications

Parameters and characteristics for this part

Specification	PEC12R-3225F-S0024

Actuator Type	Flatted End
Actuator Type [diameter]	6 mm
Built in Switch	True
Detent	True
Encoder Type	Mechanical
Mounting Type	PCB Through Hole, Panel
Orientation	Vertical
Output Type	Quadrature (Incremental)
Pulses per Revolution	24 per Revolution
Rotational Life (Cycles Min) [Min]	30K
Termination Style	PC Pin

Part	Termination Style	Rotational Life (Cycles Min) [Min]	Actuator Type [diameter]	Actuator Type	Output Type	Pulses per Revolution	Encoder Type	Orientation	Mounting Type
Bourns Inc. PEC12R-4120F-S0012	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	12 pulses per revolution	Mechanical	Vertical
Bourns Inc. PEC12R-2217F-S0024	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	24 per Revolution	Mechanical	Right Angle
Bourns Inc. PEC12R-4215F-S0024	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	24 per Revolution	Incremental	Horizontal
Bourns Inc. PEC12R-4230F-N0024	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	24 per Revolution	Mechanical	Vertical
Bourns Inc. PEC12R-3225F-S0024	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	24 per Revolution	Mechanical	Vertical	Panel PCB Through Hole
Bourns Inc. PEC12R-4020F-S0012	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	12 pulses per revolution	Mechanical	Vertical
Bourns Inc. PEC12R-4017F-N0024	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	24 per Revolution	Mechanical	Vertical
Bourns Inc. PEC12R-4125F-N0012	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	12 pulses per revolution	Mechanical	Vertical
Bourns Inc. PEC12R-4020F-N0012	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	12 pulses per revolution	Mechanical	Vertical
Bourns Inc. PEC12R-2225F-N0024	PC Pin	30K	6 mm	Flatted End	Quadrature (Incremental)	24 per Revolution	Mechanical	Right Angle
