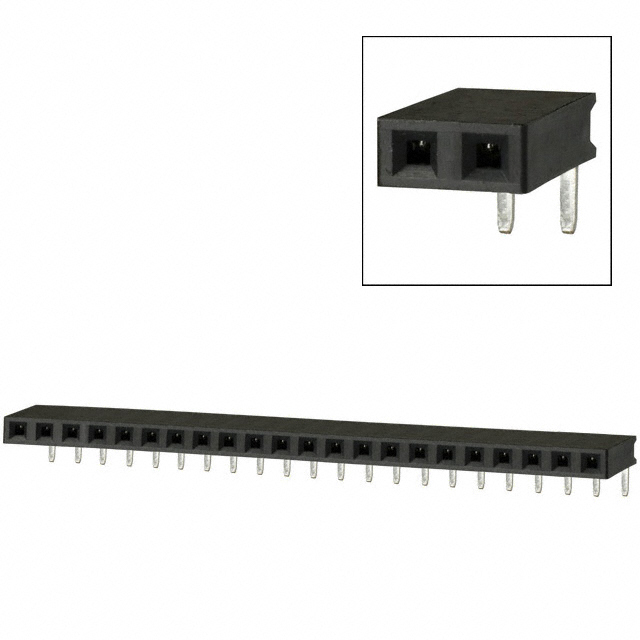

Specification	PPTC221LGBN

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.124 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	22
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.1 in
Style	Board
Termination	Solder
Voltage Rating	250 V

PPTC221 Series

Part	Number of Positions	Termination	Connector Type	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Contact Finish - Post	Pitch - Mating	Voltage Rating	Current Rating	Number of Positions Loaded	Mounting Type	Fastening Type	Contact Finish - Mating	Contact Type	Insulation Height	Style	Insulation Color	Contact Length - Post	Contact Material	Insulation Material	Contact Shape
Sullins Connector Solutions PPTC221LGBN-RC	22	Solder	Header	1	-40 °C	105 °C	UL94 V-0	Tin	0.1 in	250 V	3 A	All	Right Angle Through Hole	Push-Pull	Tin	Female Socket	0.1 in	Board	Black	0.124 in	Phosphor Bronze	Polyester	Square
Sullins Connector Solutions PPTC221KFXC	22	Solder	Header Top or Bottom Entry	1	-40 °C	105 °C	UL94 V-0	Tin	0.1 in	250 V	3 A	All	Surface Mount	Push-Pull	Tin	Female Socket	0.28 in	Board	Black		Phosphor Bronze	Polyester	Square
Sullins Connector Solutions PPTC221LGBN	22	Solder	Header	1	-40 °C	105 °C	UL94 V-0	Tin	0.1 in	250 V	3 A	All	Right Angle Through Hole	Push-Pull	Tin	Female Socket	0.1 in	Board	Black	0.124 in	Phosphor Bronze	Polyester	Square
