132005-1

Active

TE Connectivity AMP Connectors

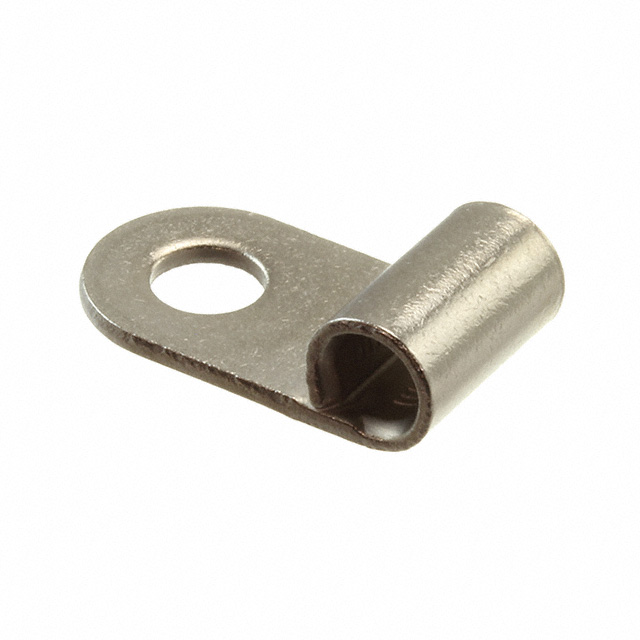

CONN RING CIRC 10-12AWG M4 CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RING CIRC 10-12AWG M4 CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	132005-1

Contact Finish	Nickel
Contact Material	Copper
Insulation	Non-Insulated
Length - Overall [x]	0.705 in
Length - Overall [x]	17.91 mm
Mounting Type	Free Hanging (In-Line), Right Angle
Stud/Tab Size	M4 Stud
Terminal Type	Circular
Termination	Flag, Crimp
Thickness	0.99 mm
Thickness	0.039 in
Width - Outer Edges [y]	9.5 mm
Width - Outer Edges [y]	0.374 in
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

CONN RING CIRC 10-12AWG M4 CRIMP

Part	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [y]	Width - Outer Edges [y]	Termination	Stud/Tab Size	Insulation	Mounting Type	Contact Material	Thickness	Thickness	Contact Finish	Length - Overall [x]	Length - Overall [x]	Terminal Type
TE Connectivity AMP Connectors 132005-1	12 AWG	10 AWG	9.5 mm	0.374 in	Crimp, Flag	M4 Stud	Non-Insulated	Free Hanging (In-Line), Right Angle	Copper	0.99 mm	0.039 in	Nickel	0.705 in	17.91 mm	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector M4 Stud Circular 10-12 AWG Crimp, Flag
