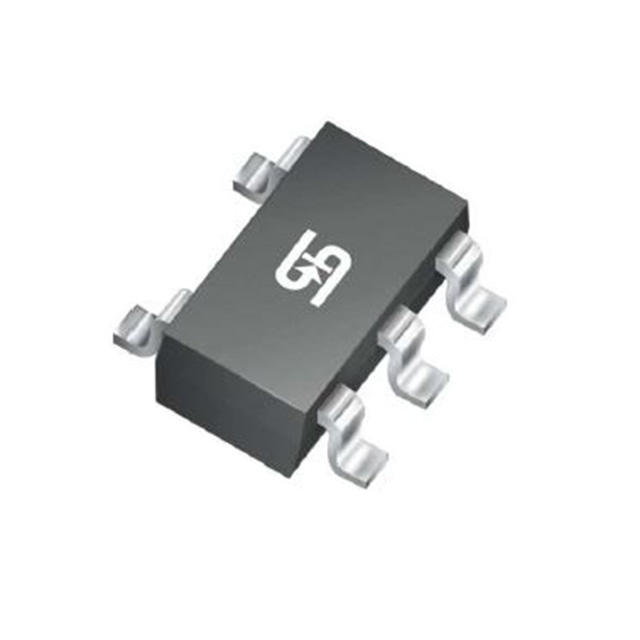

TS5213CX533 RFG

Active

Taiwan Semiconductor Corporation

IC REG LINEAR 3.3V 80MA SOT25

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

IC REG LINEAR 3.3V 80MA SOT25

Technical Specifications

Parameters and characteristics for this part

Specification	TS5213CX533 RFG

Control Features	Enable
Current - Output	80 mA
Current - Supply (Max) [Max]	3 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	SC-74A, SOT-753
Protection Features	Over Temperature, Reverse Polarity, Over Current
PSRR	65 dB
Supplier Device Package	SOT-25
Voltage - Input (Max) [Max]	16 V
Voltage - Output (Min/Fixed)	3.3 V
Voltage Dropout (Max) [Max]	0.42 V

Part	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Output Type	Number of Regulators	Mounting Type	Current - Supply (Max) [Max]	Output Configuration	Protection Features	Package / Case	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Control Features	PSRR	Voltage Dropout (Max) [Max]
Taiwan Semiconductor Corporation TS5213CX533 RFG	80 mA	-40 °C	125 ¯C	SOT-25	1.81 mOhm	1	Surface Mount	3 mA	Positive	Over Current Over Temperature Reverse Polarity	SC-74A SOT-753	16 V	3.3 V	Enable	65 dB	0.42 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 80mA SOT-25
